说明

教程借鉴厚国兄项目进行简化

地址 https://gitee.com/zhuxiaohuaqn/esp32s3-ai-chat

物料准备

ESP32-S3-N16R8开发板
microSD卡(不大于32GB)
读卡器
microSD 卡模块
INMP441音频模块

接线

INMP441

INMP441	ESP32-S3
SCK（BCLK）	GPIO4
WS（LRC）	GPIO5
SD（DIN）	GPIO6
VCC	3V3
GND	GND

microSD SPI

microSD	ESP32-S3
CS	GPIO10
MISO	GPIO13
MOSI	GPIO11
SCK	GPIO12
VCC	5V
GND	GND

固件输入

录音固件

刷入固件的方式有很多，我就不再过多赘述

下载录音固件

下载

录制完数据大概是这样

采集唤醒词音频

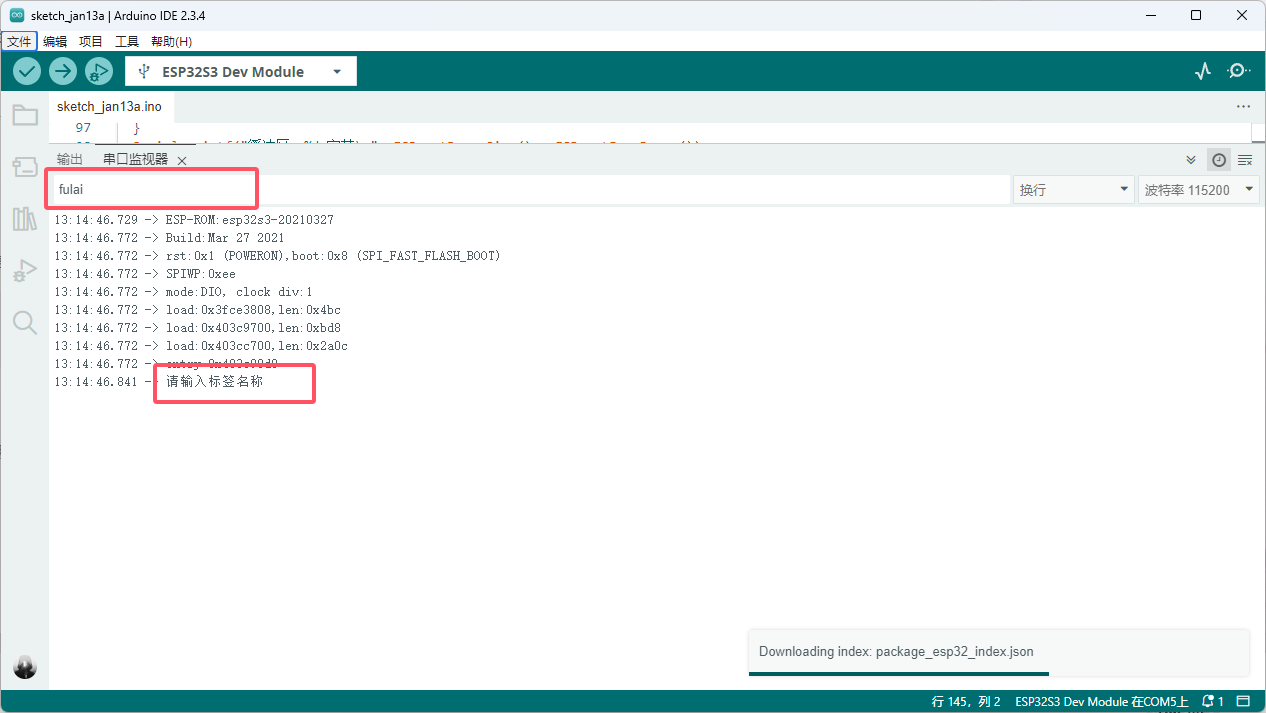

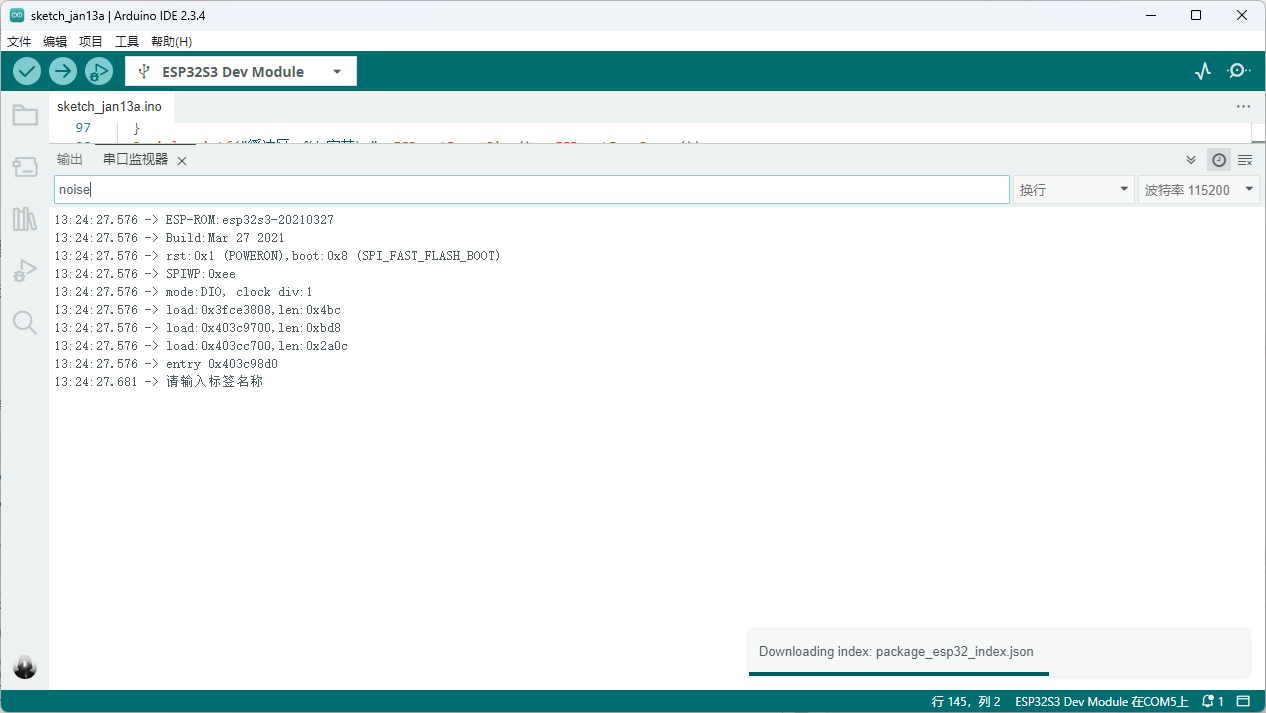

接好线后，连接开发板到电脑，打开串口工具，这里以arduino ide为例，这里的标签名称随便起，比如我的就起名 fulai，然后回车发送

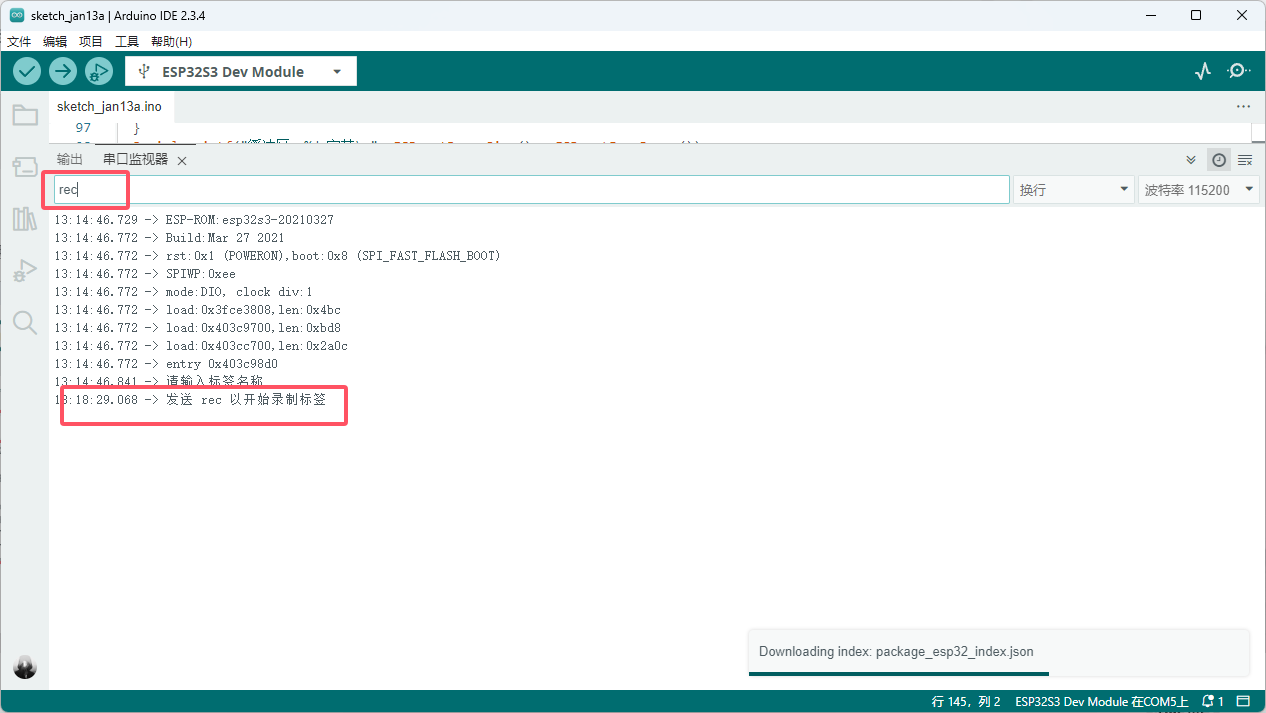

提示输入rec录制，此时会开启一个十秒录制，在十秒内重复录制唤醒词，比如福来，（录制10组以上）

采集非唤醒词

非唤醒词标签一般为noise 就如这样，所谓非唤醒词就是随便说的话，比如你可以读文章，读小说（录制10组以上）

采集静默音频

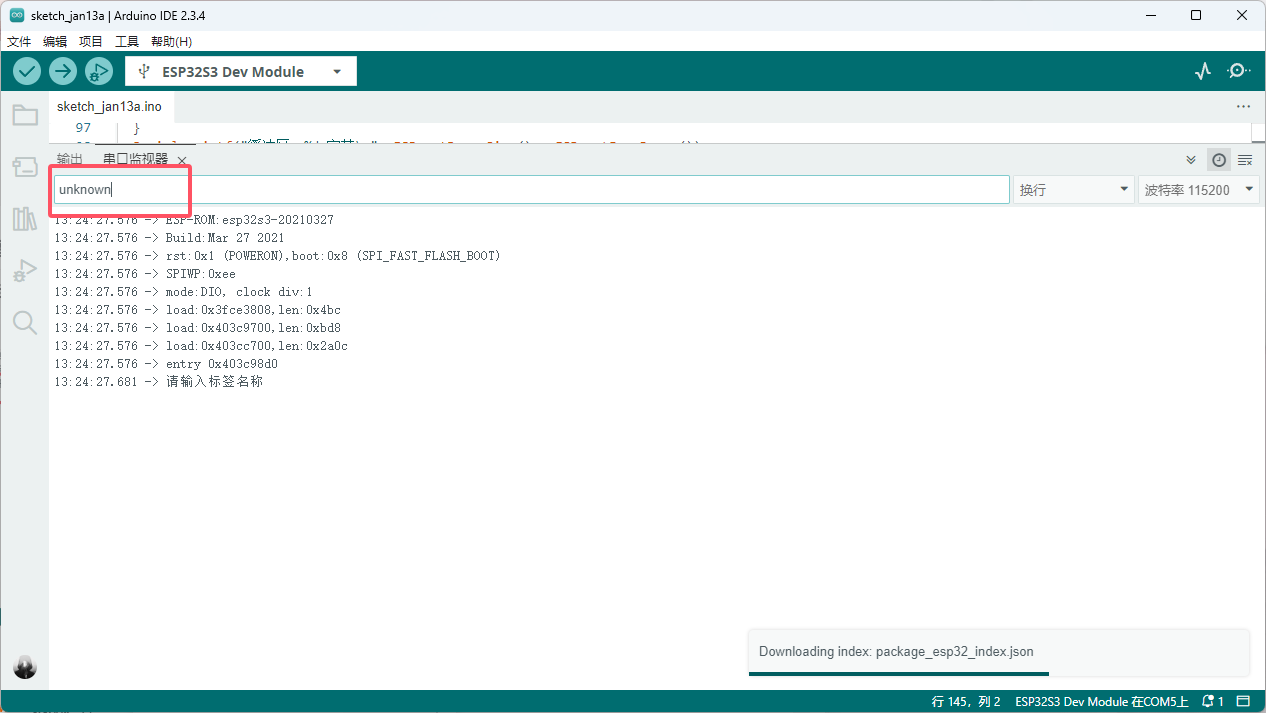

静默音频标签一般为unknown ，静默顾名思义就是什么都不说，（录制10组以上）

训练模型

Edge Impulse注册账号

https://edgeimpulse.com/

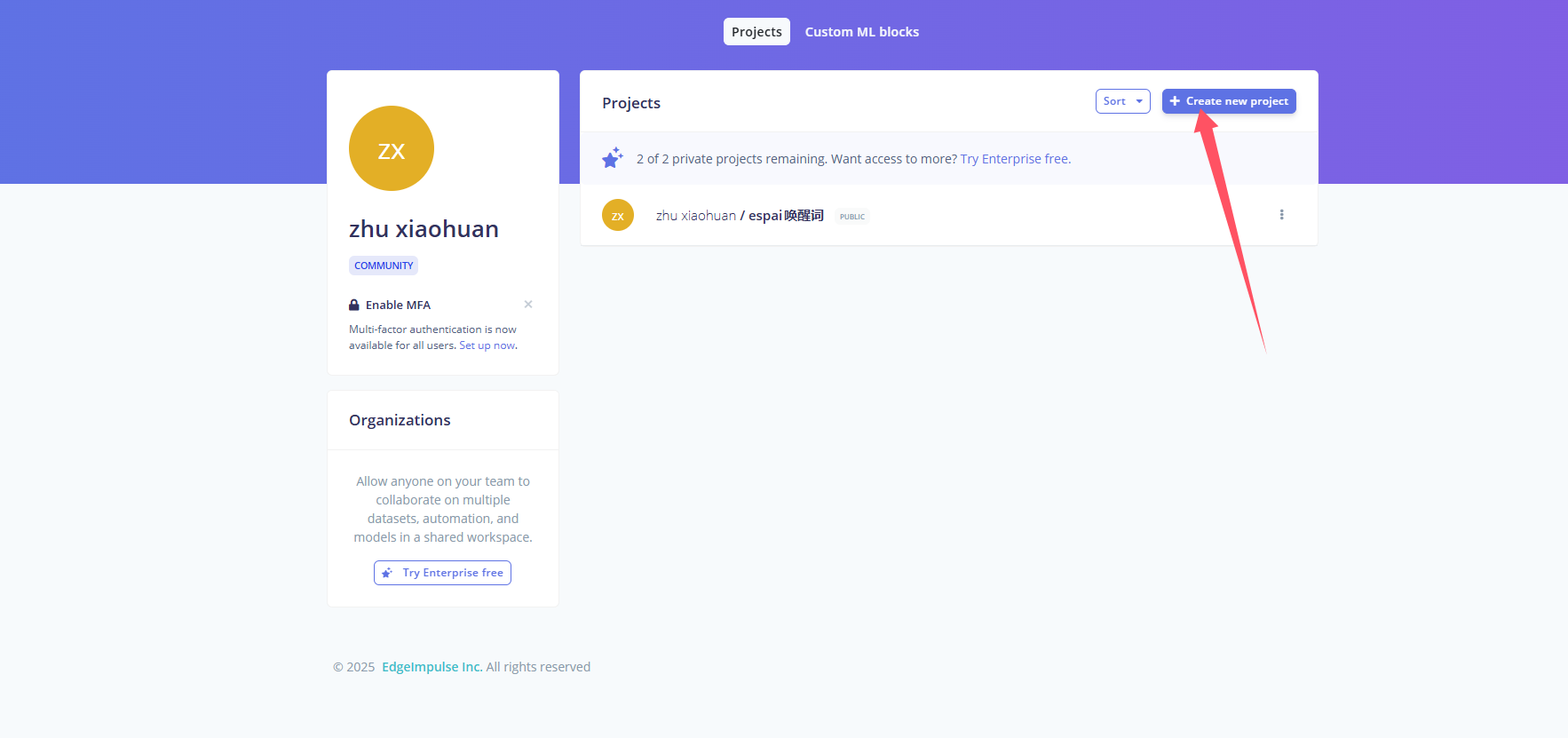

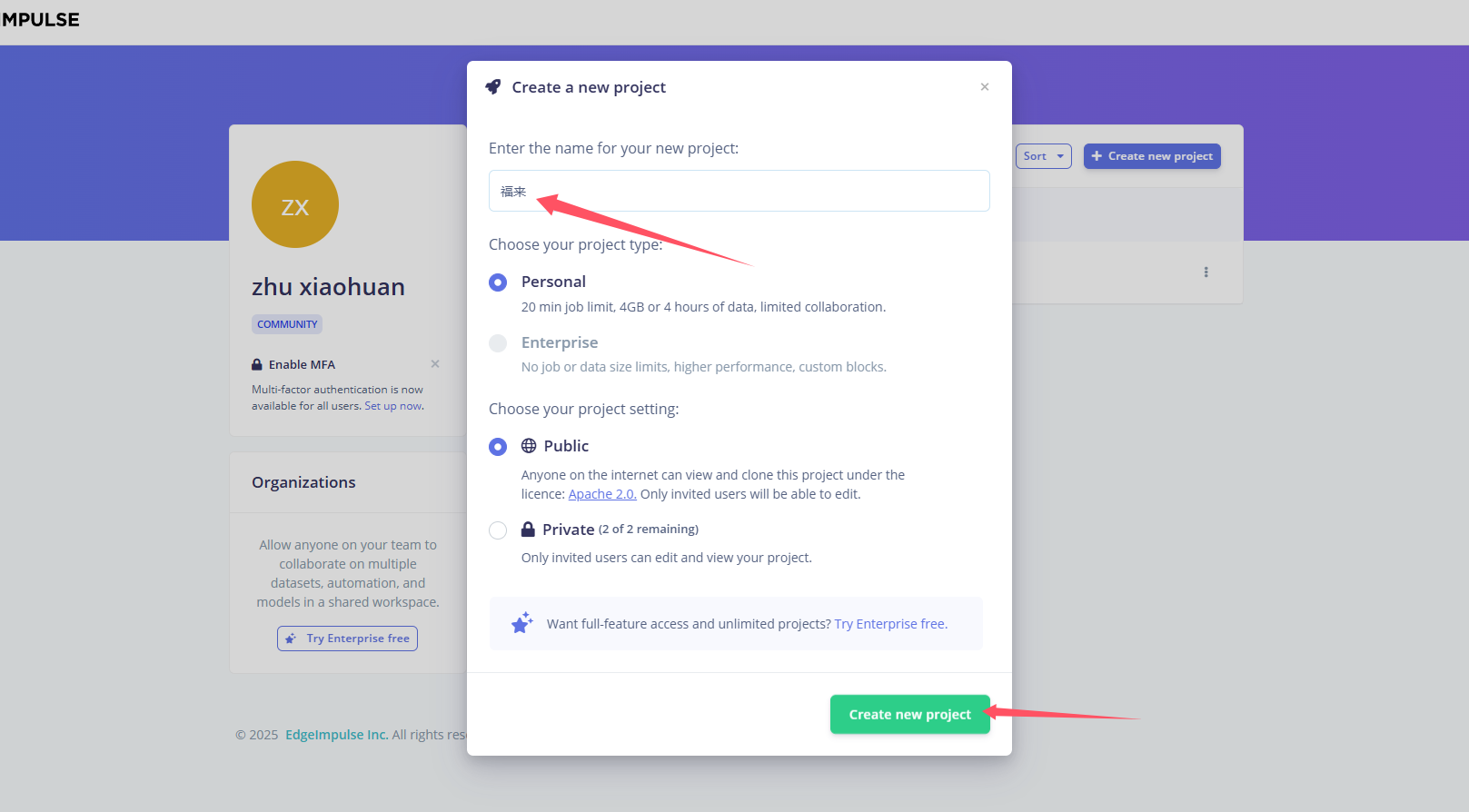

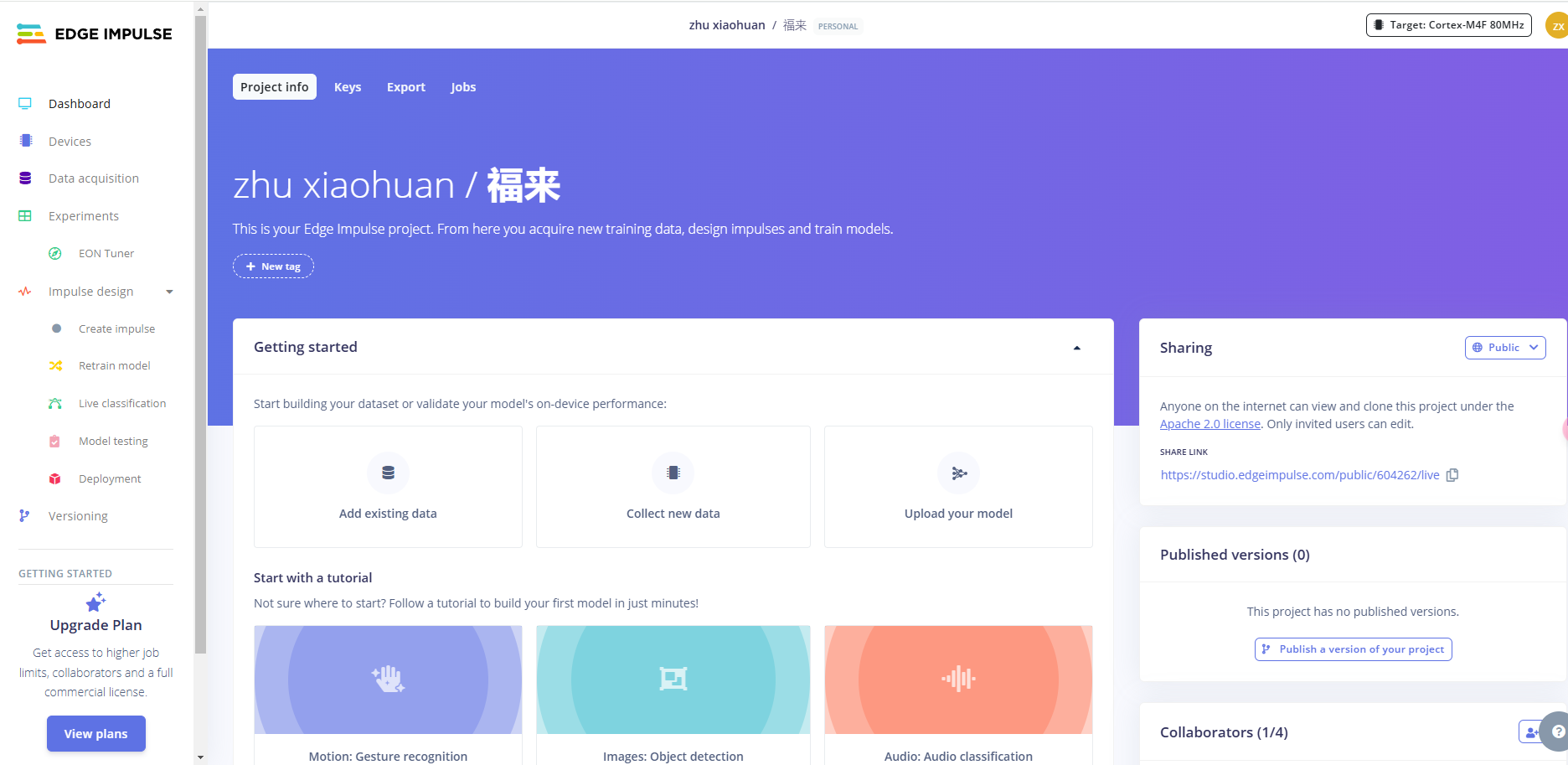

创建项目

https://studio.edgeimpulse.com/studio/profile/projects

会自动跳转到这里

上传训练文件

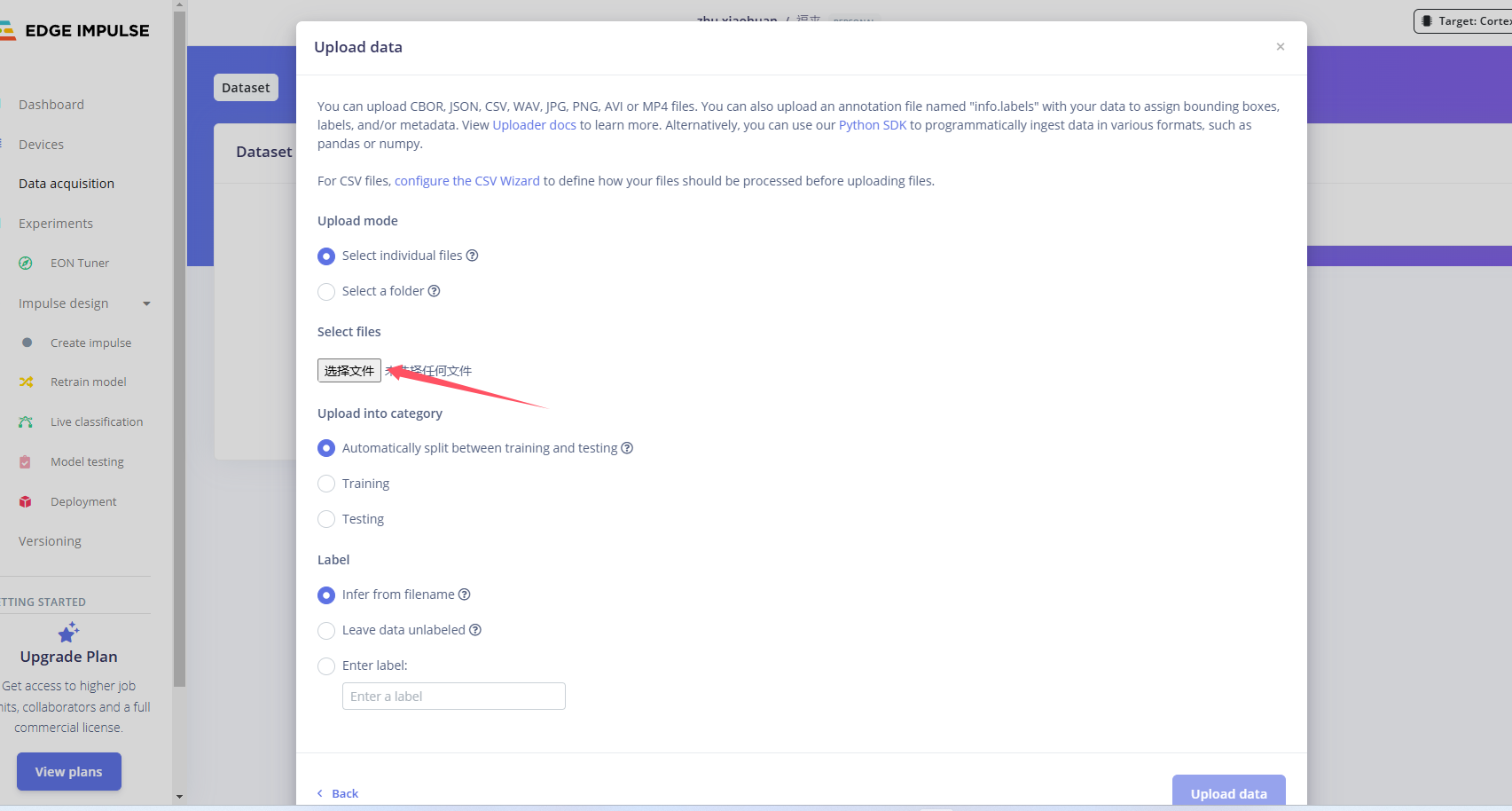

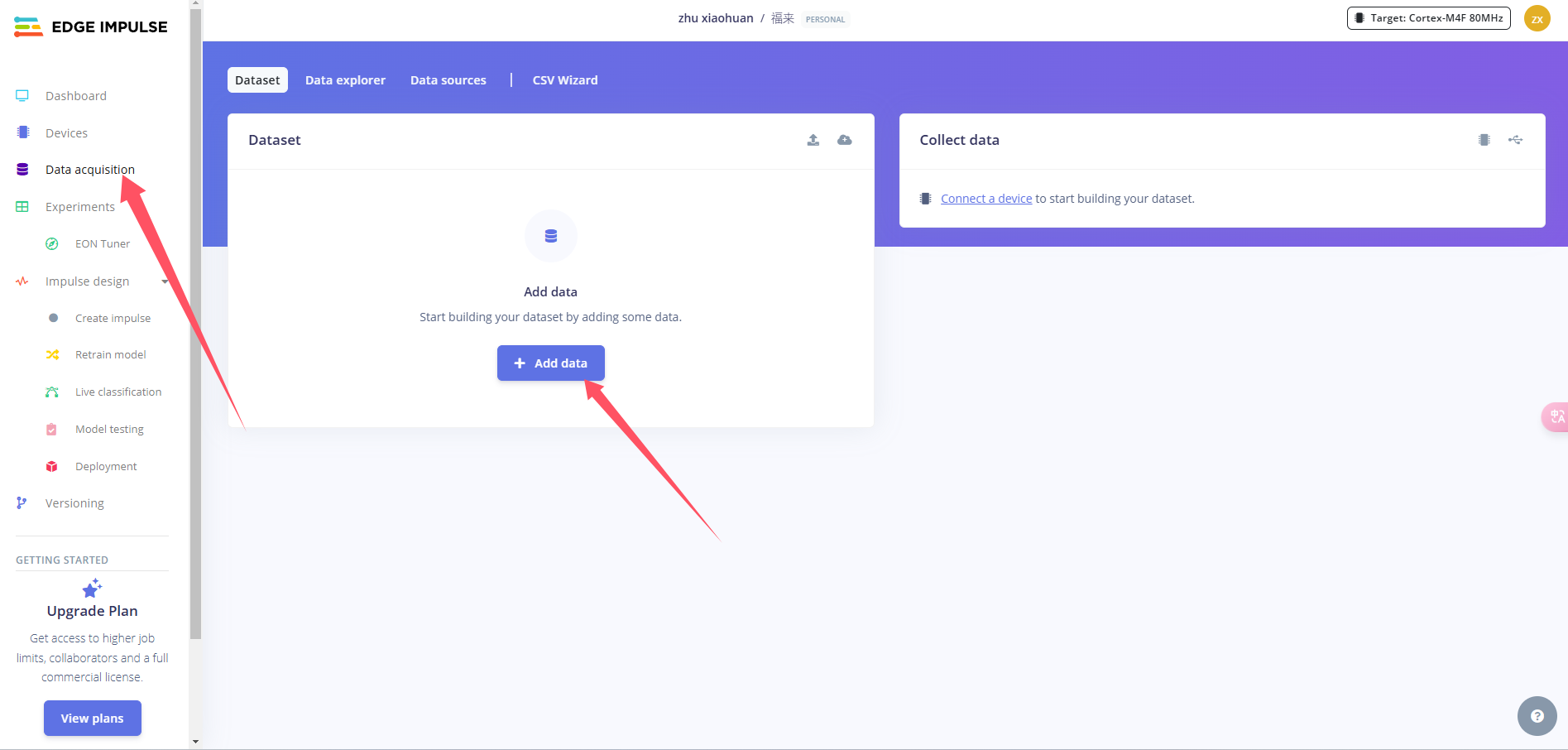

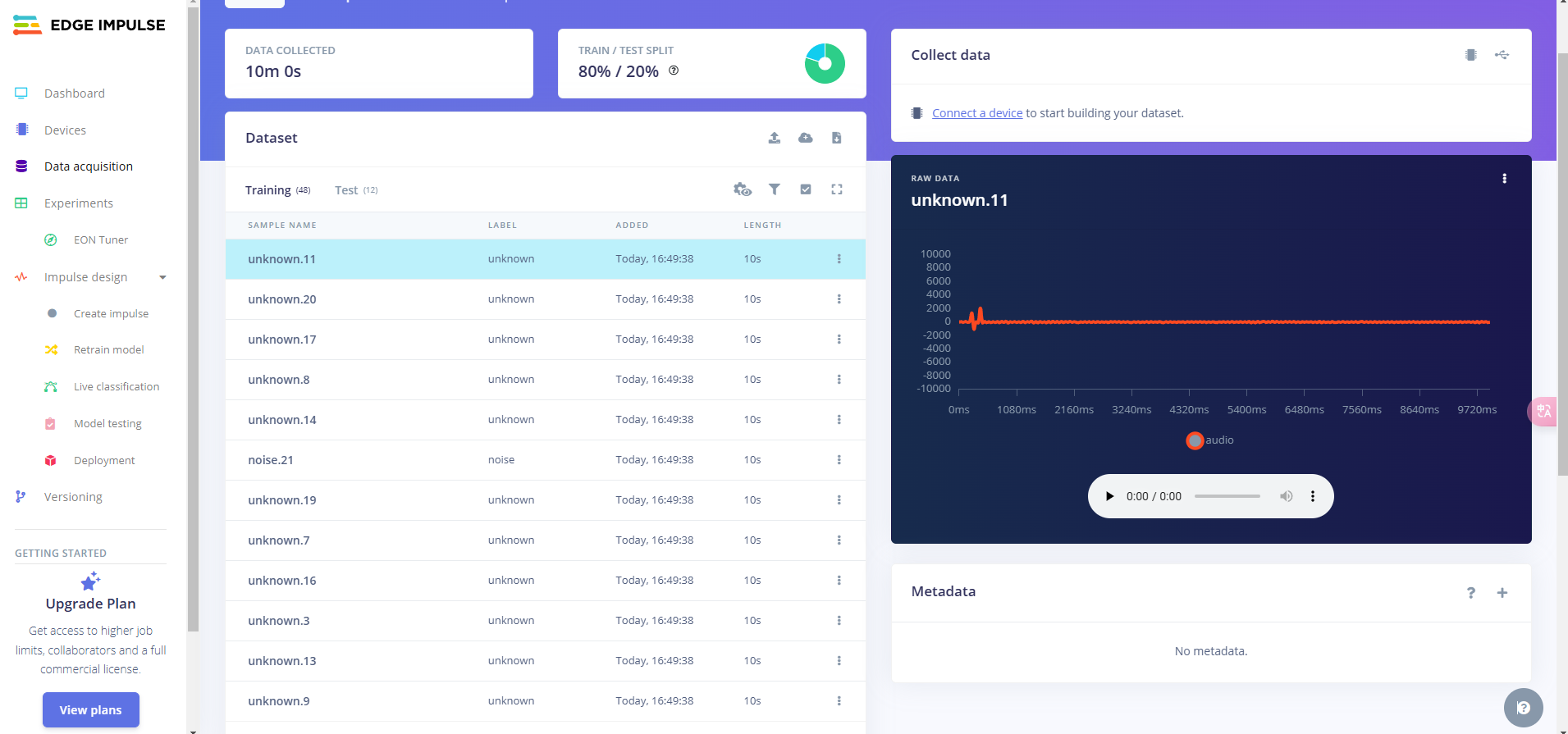

创建项目后，在Data Acquisition部分选择Upload Existing Data工具。选择要上传的文件

选择音频文件所在目录

分割音频

我们需要将上传的数据分割成1秒，现在上传的数据是10秒

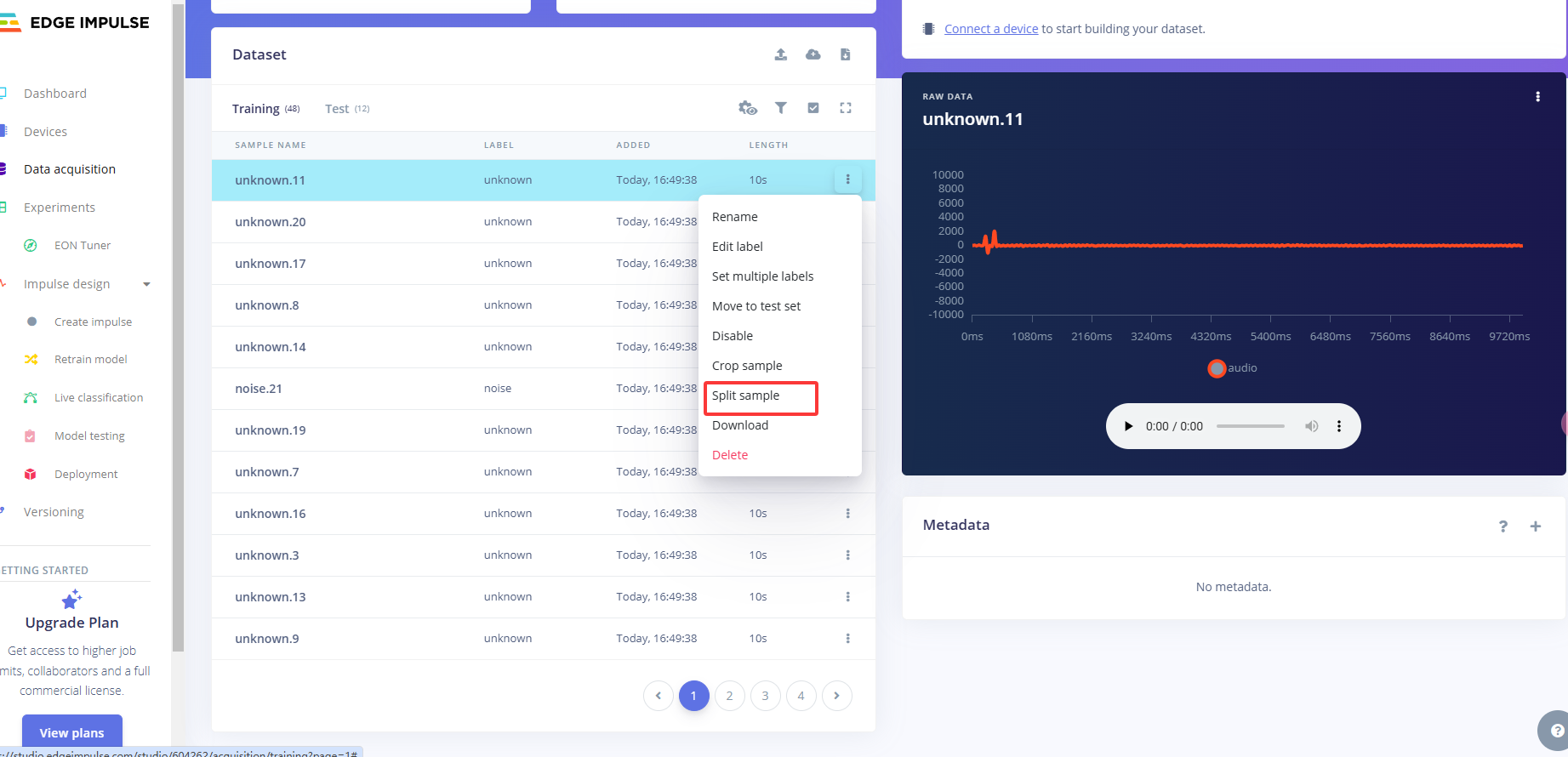

点击样本名称后的三个点，并选择Split sample

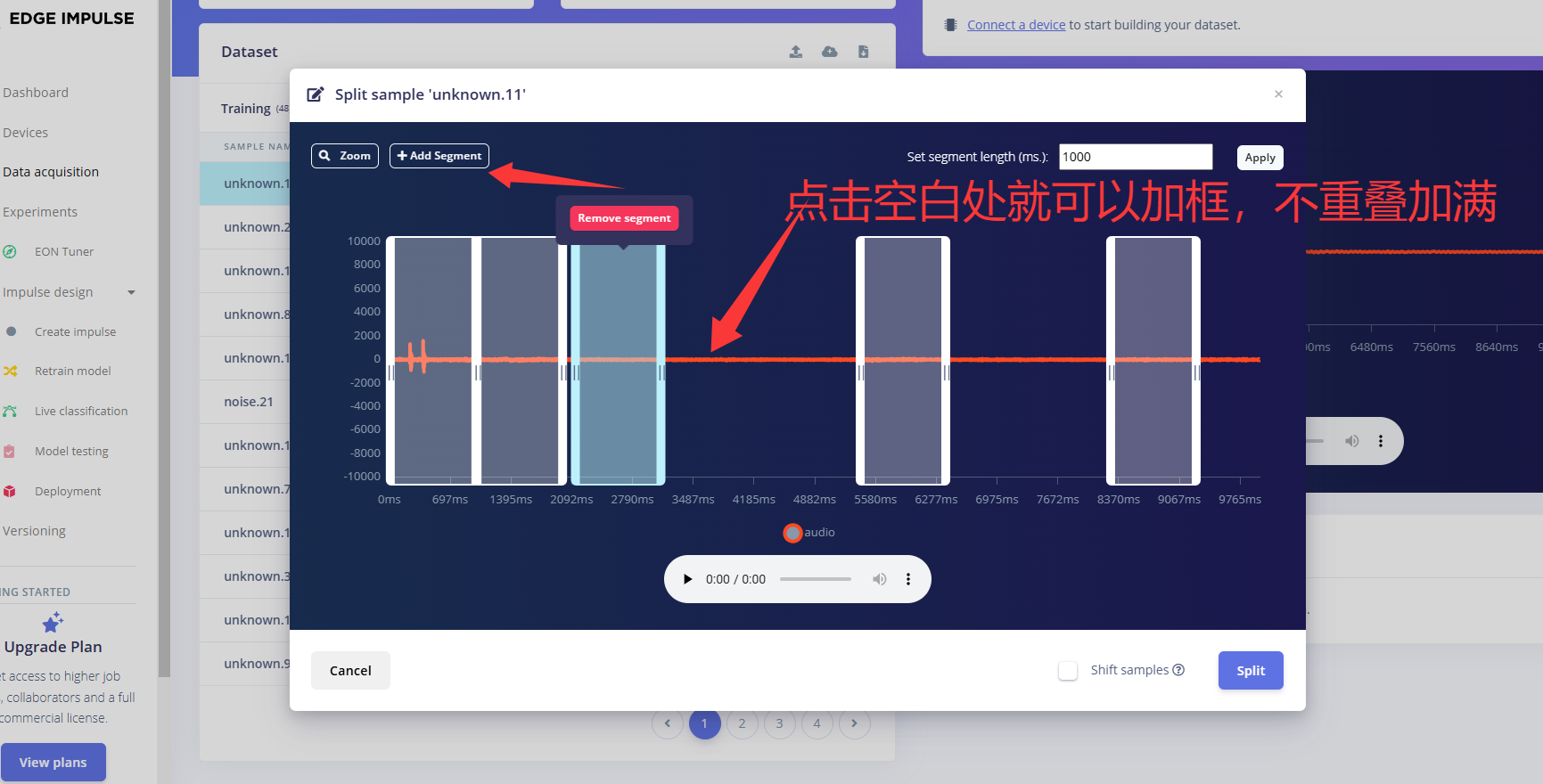

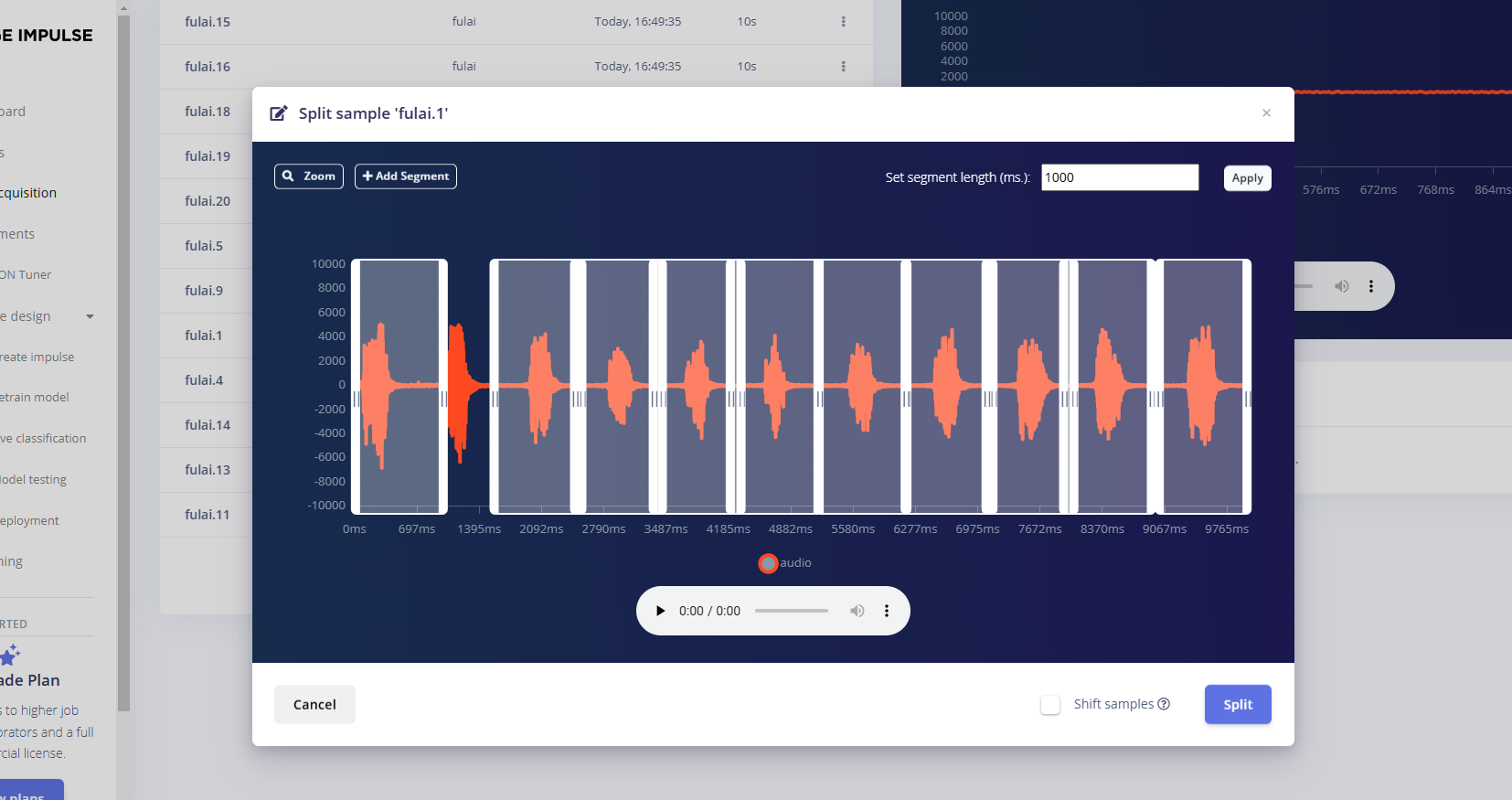

每个框代表1秒，可以选择add添加框，Split保存

唤醒词就只框起伏的地方

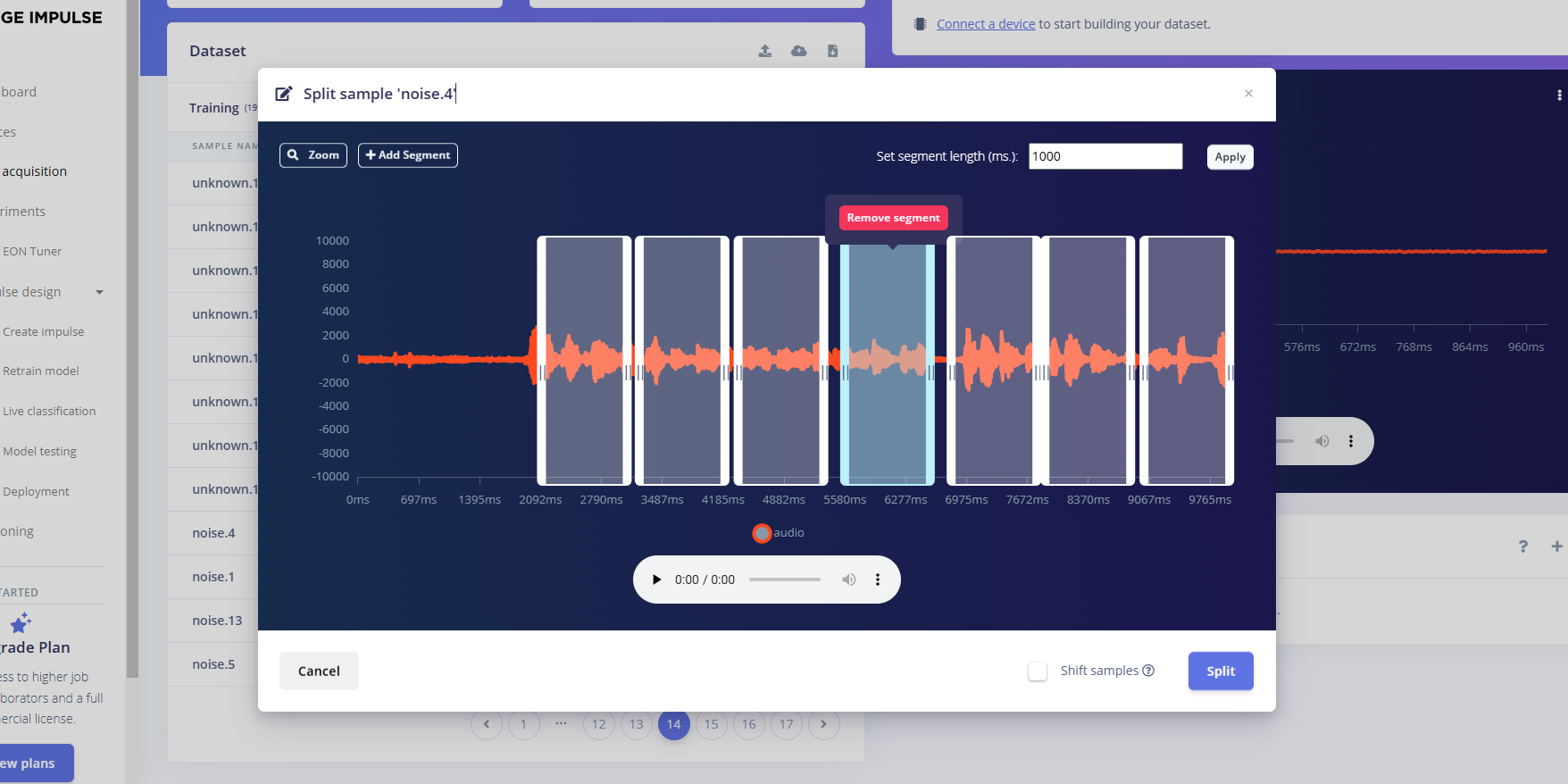

静默样本只框声音部分

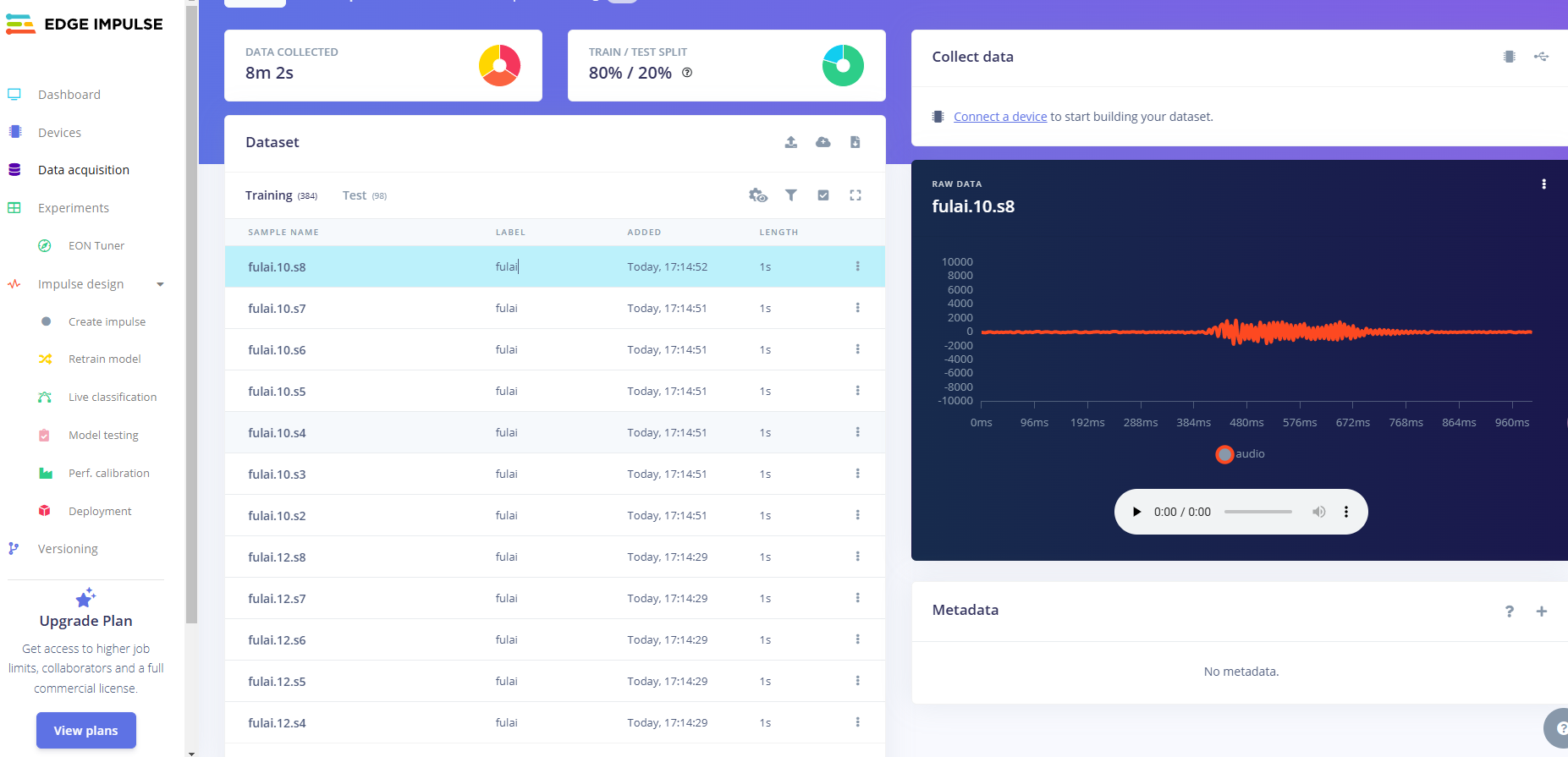

分割完成全是1秒的音频

创造脉冲信号

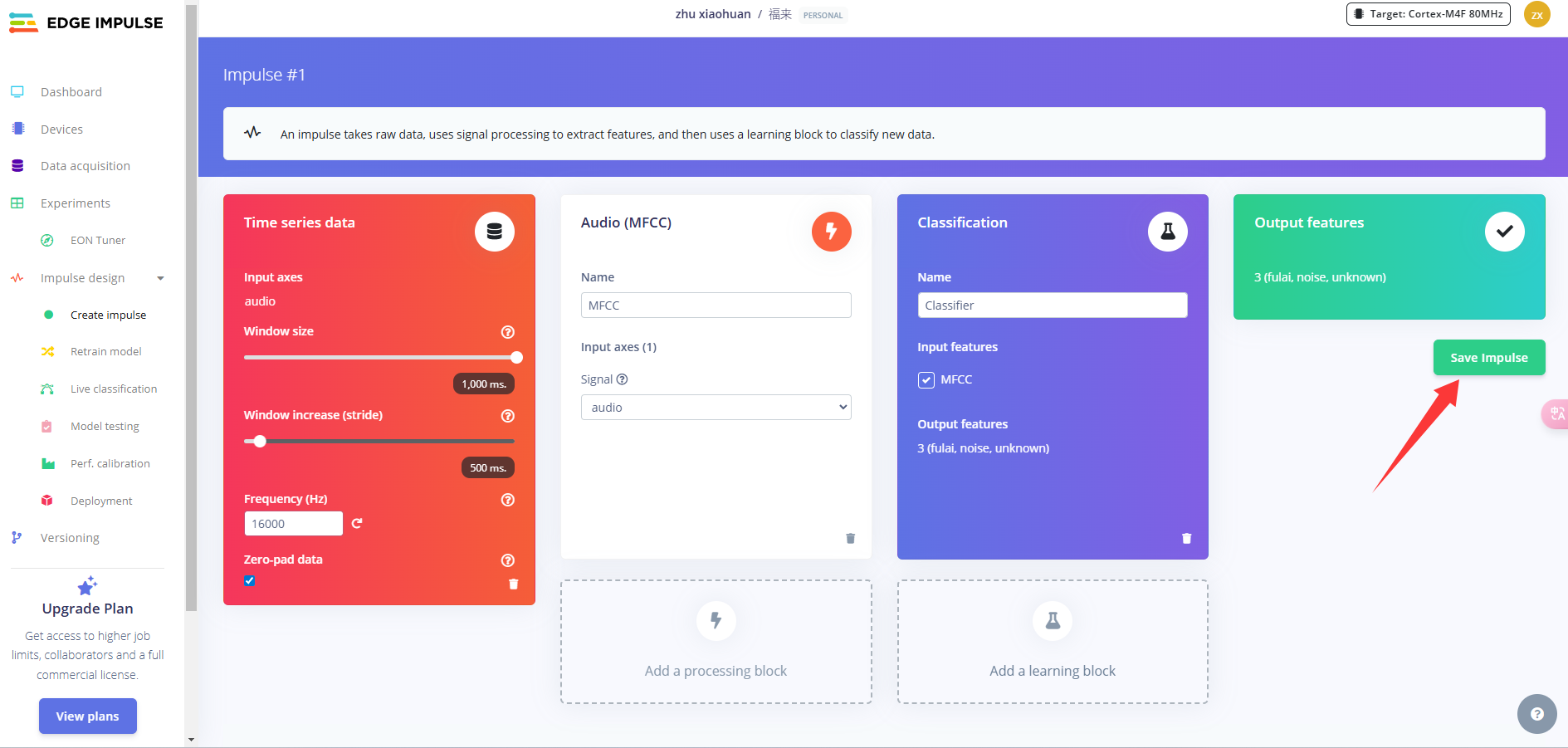

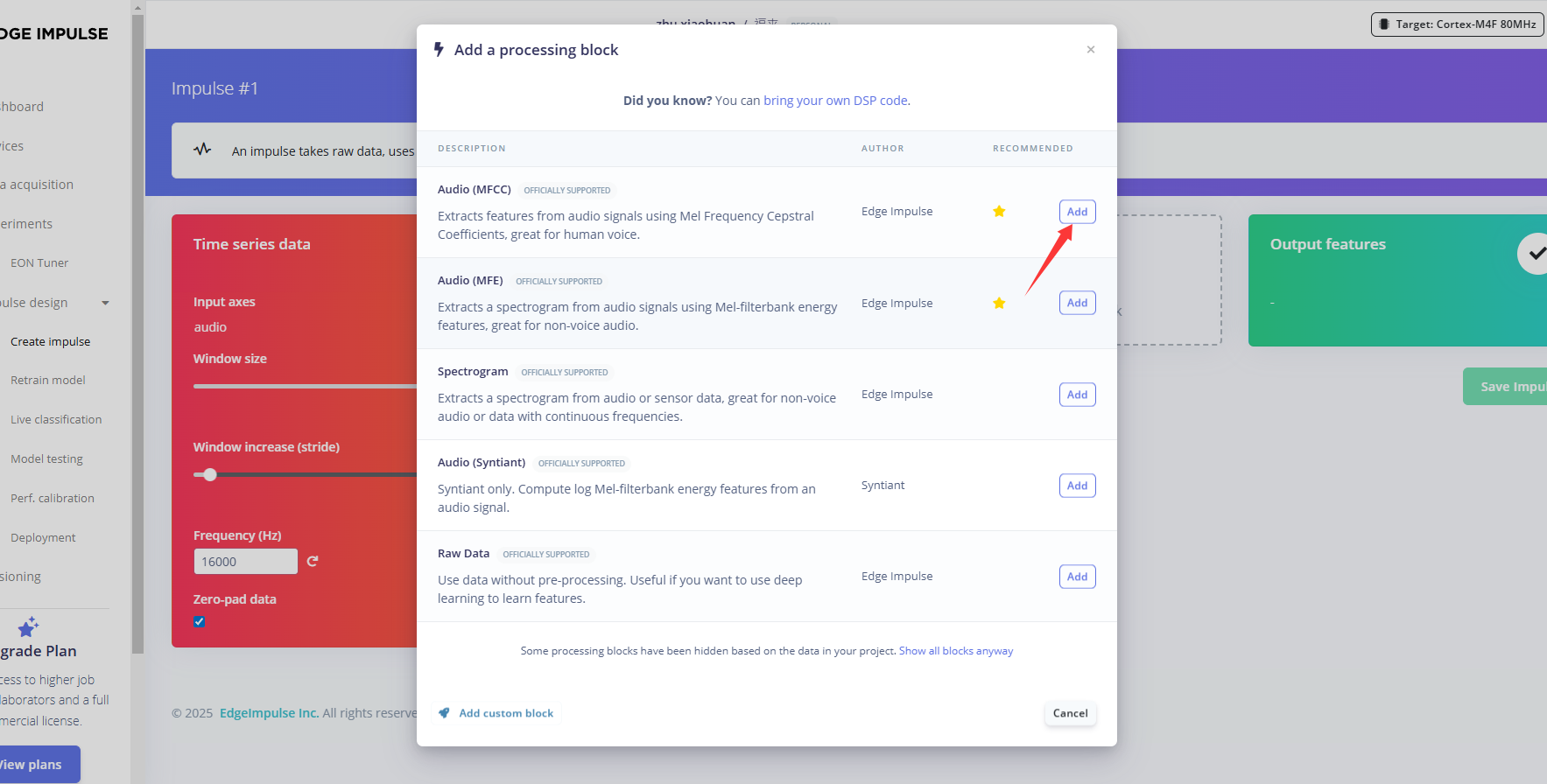

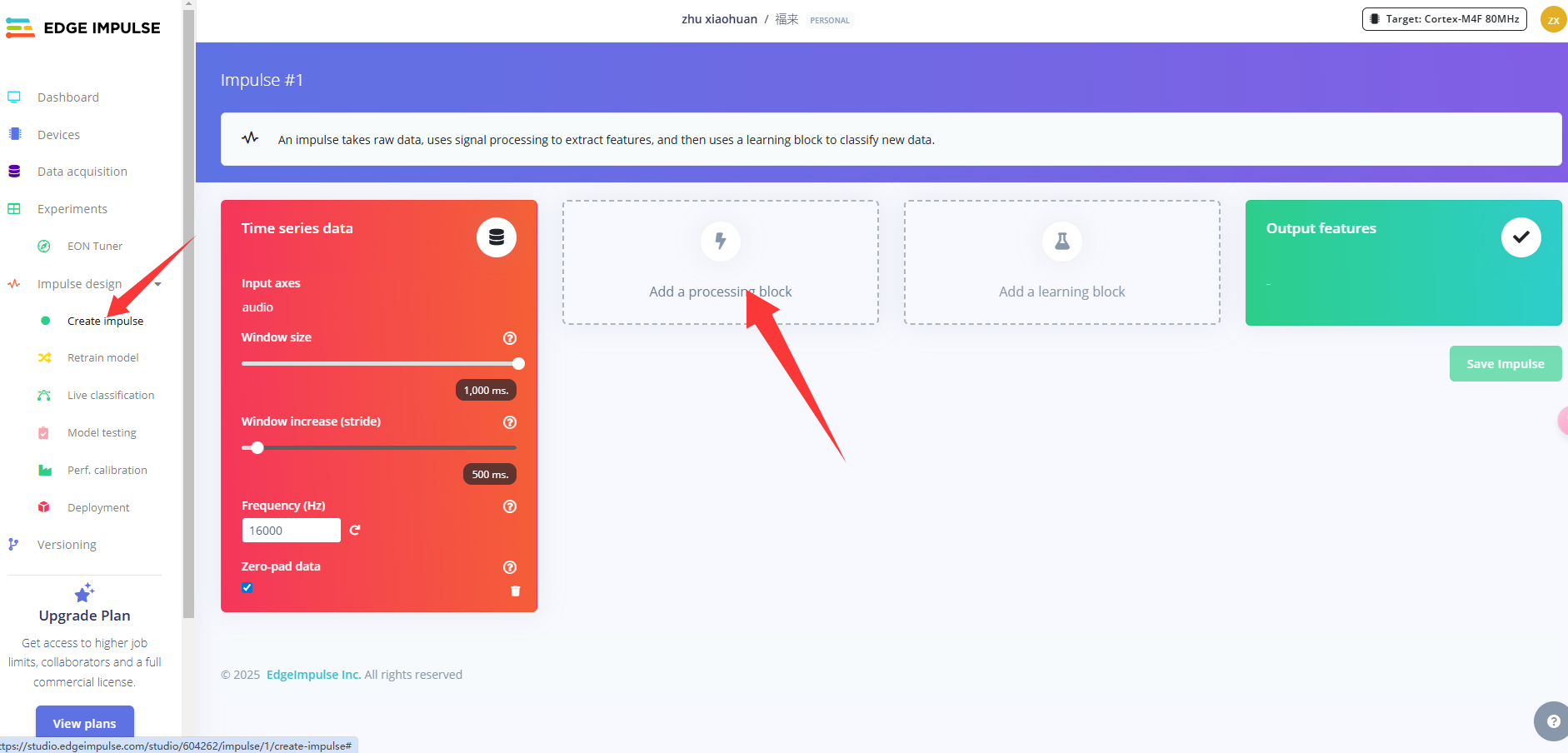

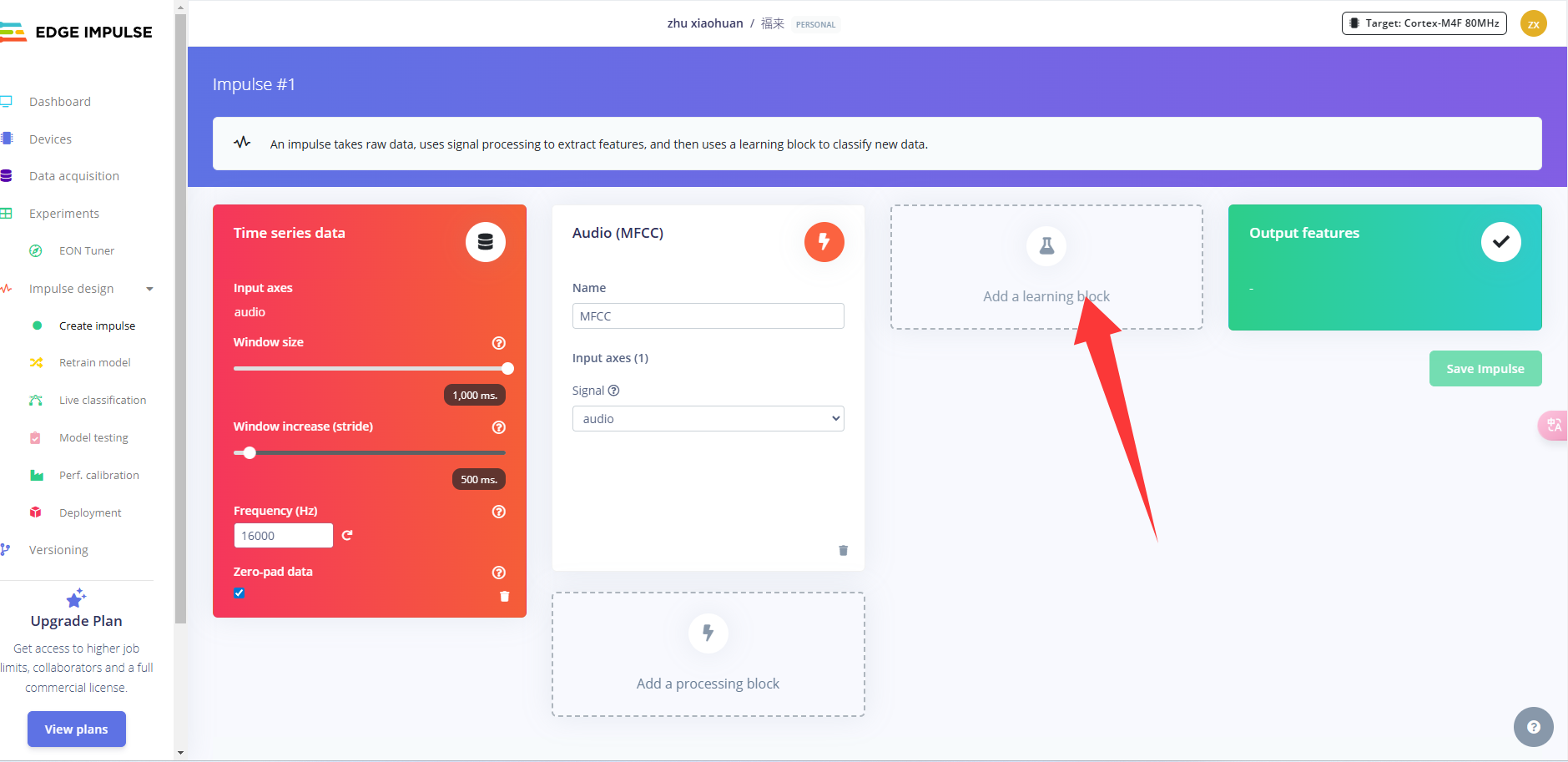

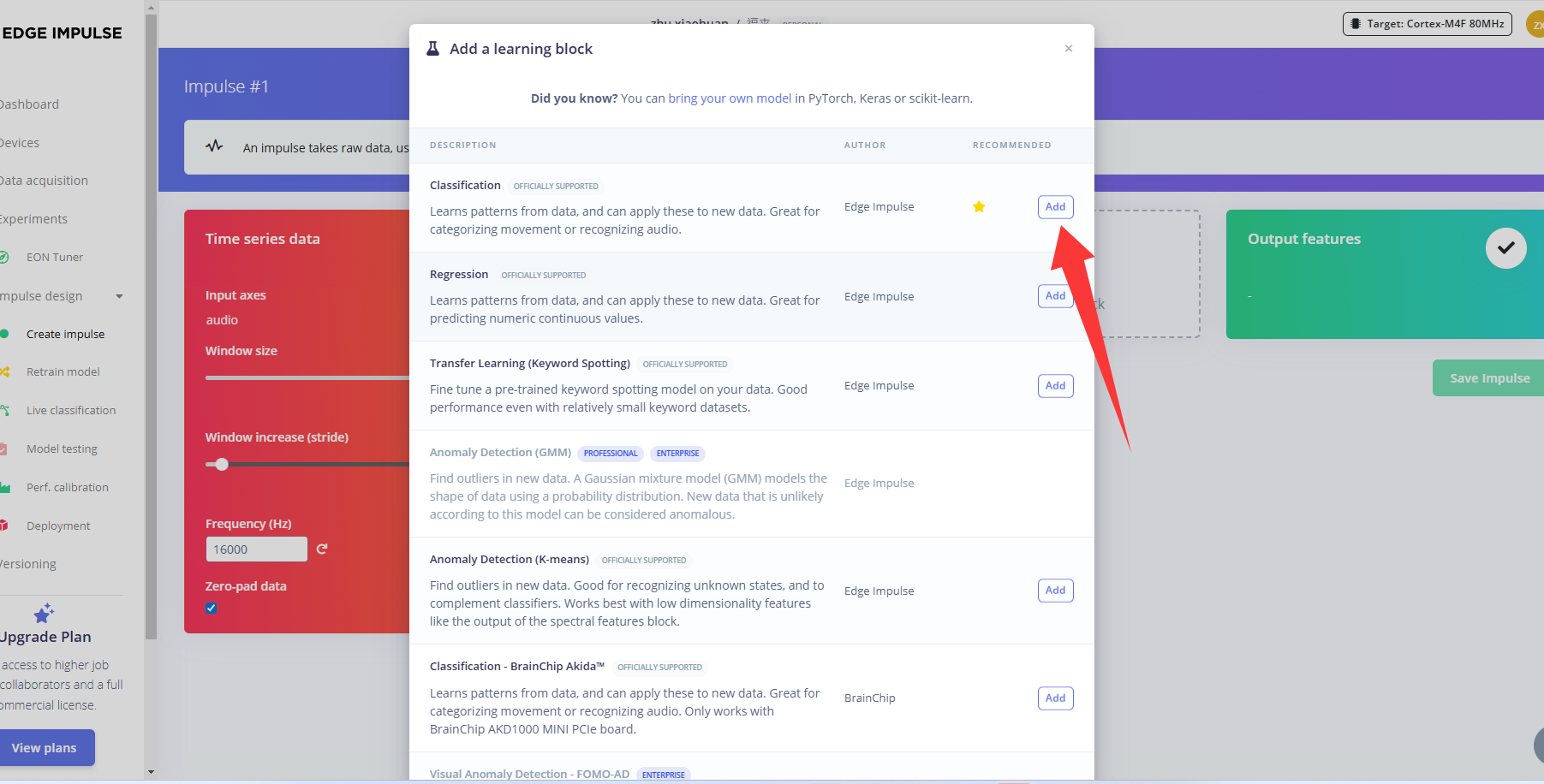

点击左侧Create impulse，然后点击Add a processing block添加Audio(MFCC)，使用MFCC，它使用梅尔频率倒谱系数从音频信号中提取特征，这对人类声音非常有用。

预处理(MFCC)

下一步是创建下一阶段要训练的图像。

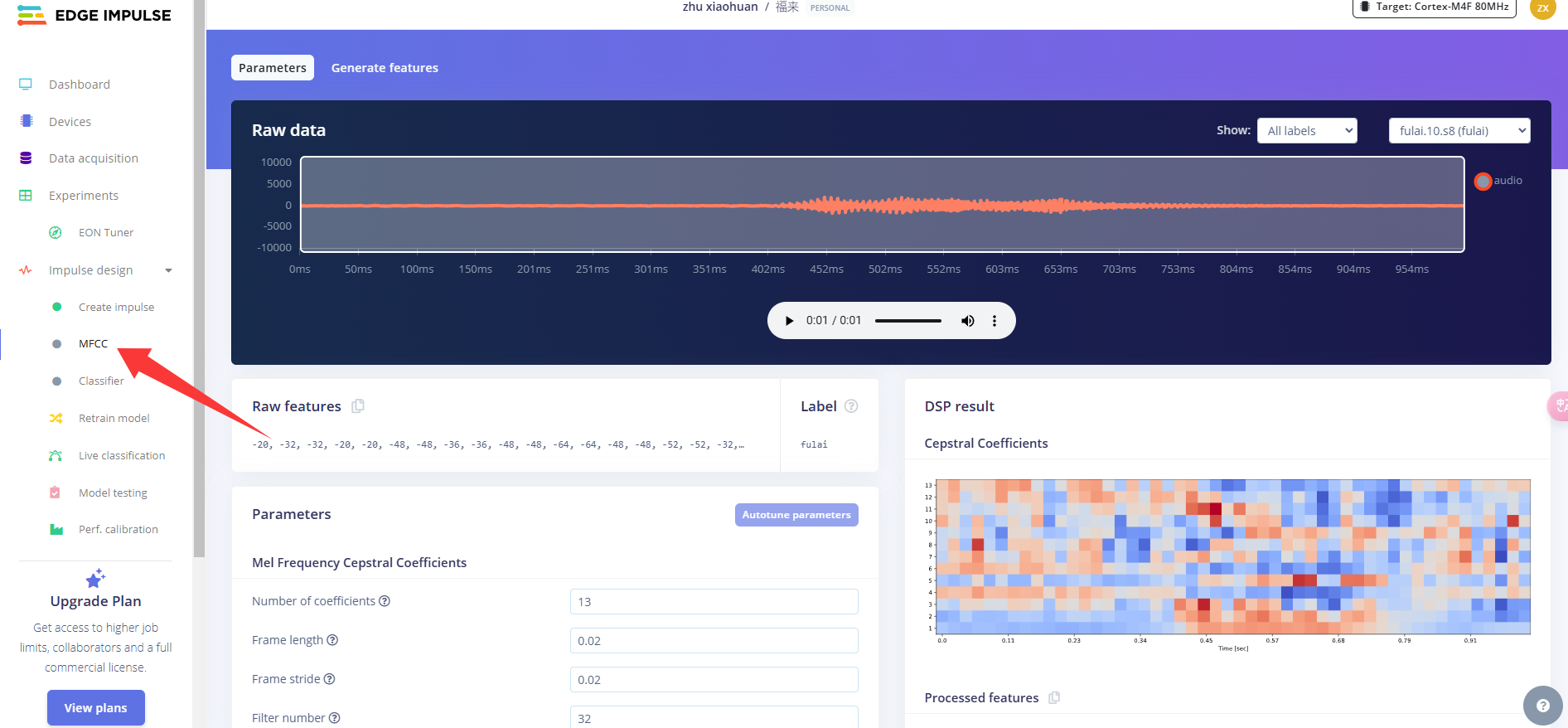

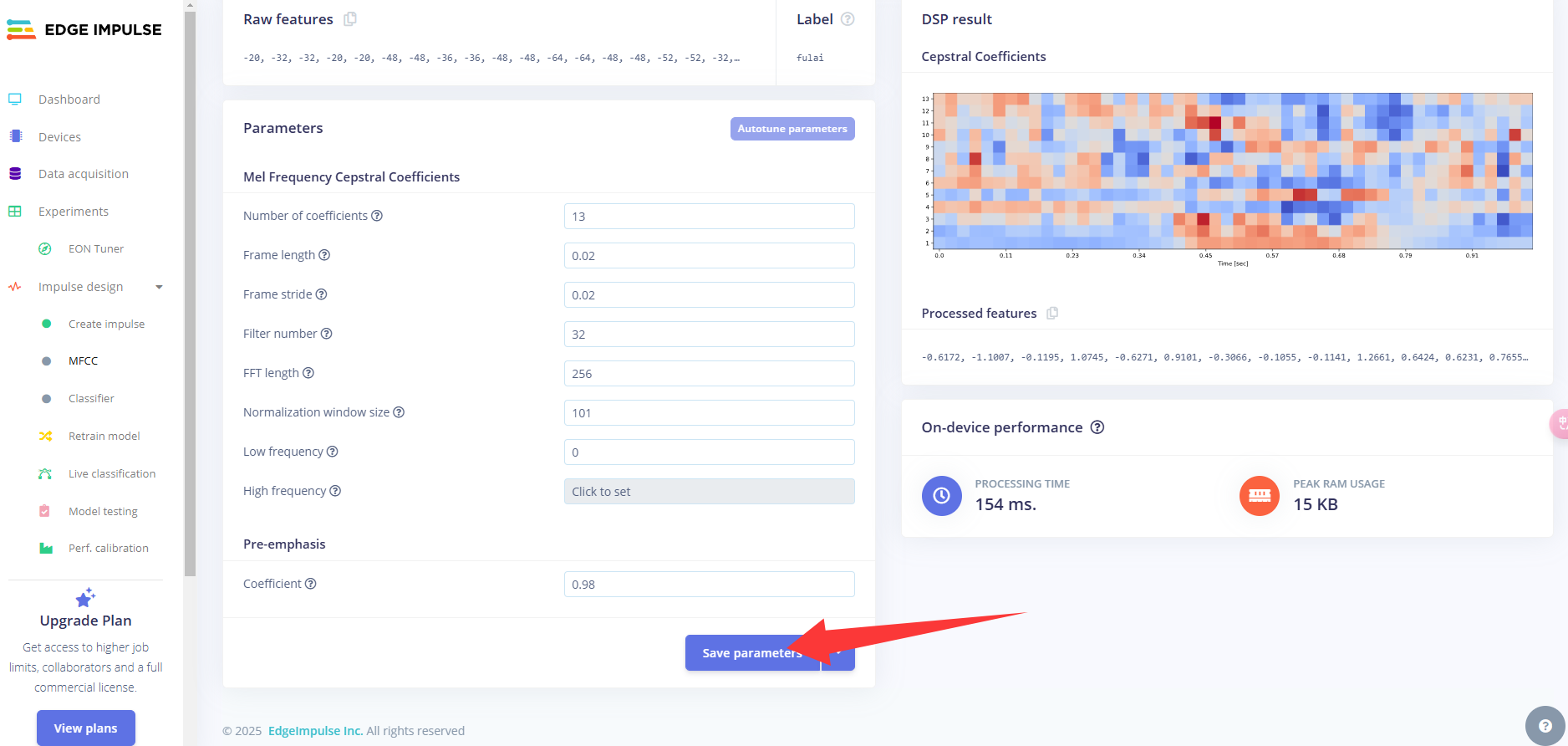

点击MFCC，我们可以保留默认参数值，直接点击Save parameters。

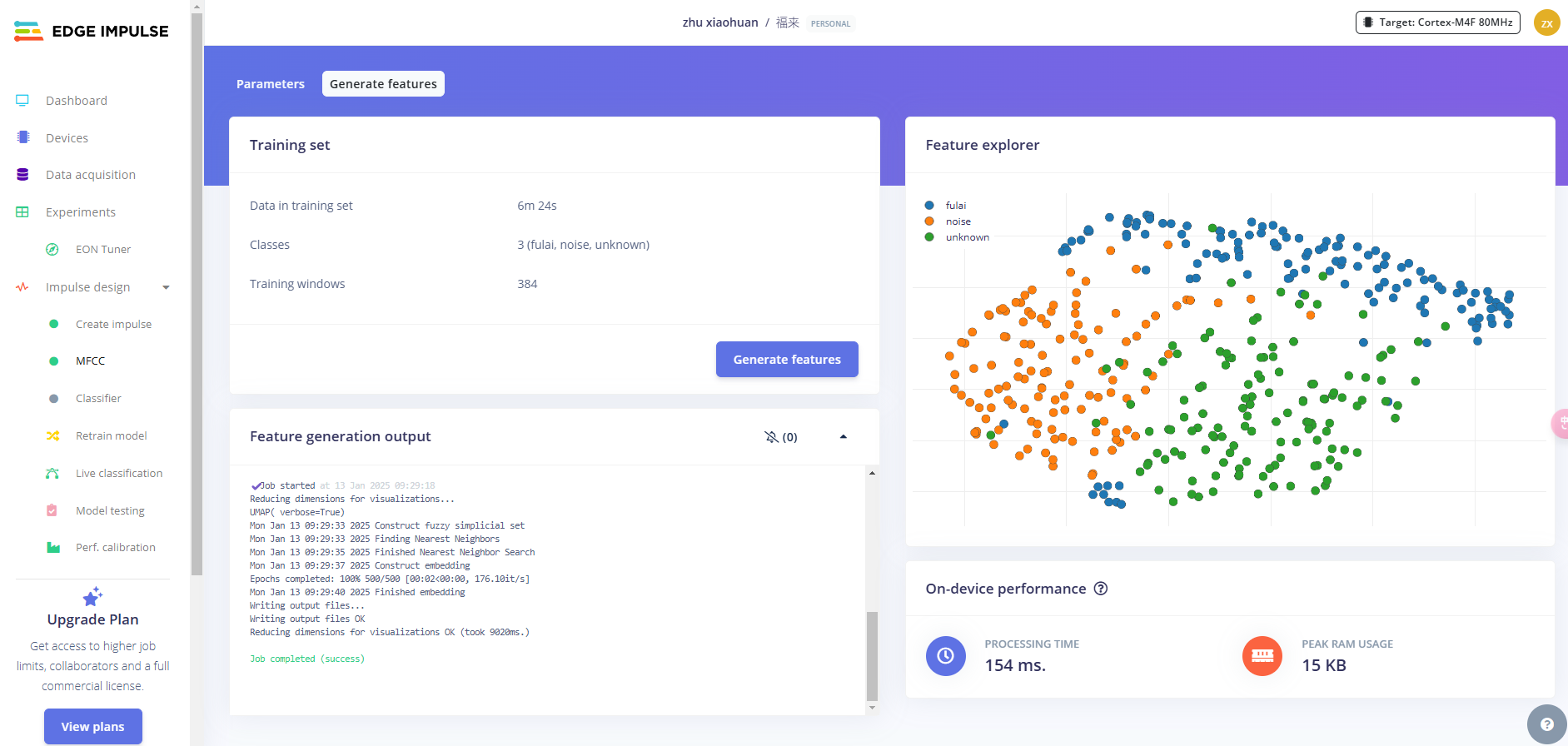

点击Generate features，生成3个标签数据的特征。这里需要稍等一会

模型设计与训练(Classifier)

接着，我们需要对模型的结构进行设计和开始训练，步骤如下：

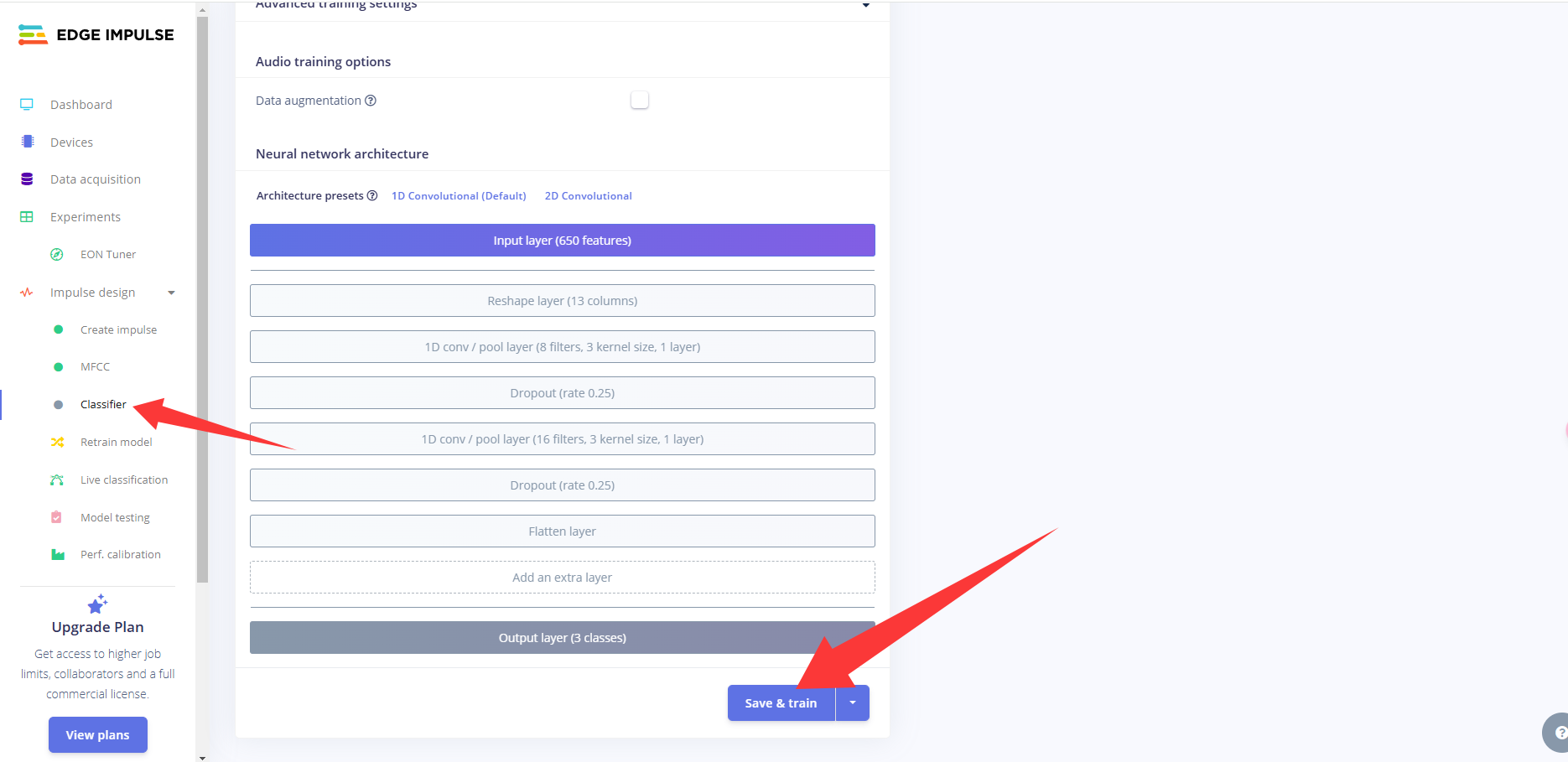

点击左侧 Classifier，整个模型的结构设计已经配置好，然后点击 save&train，开始训练模型。

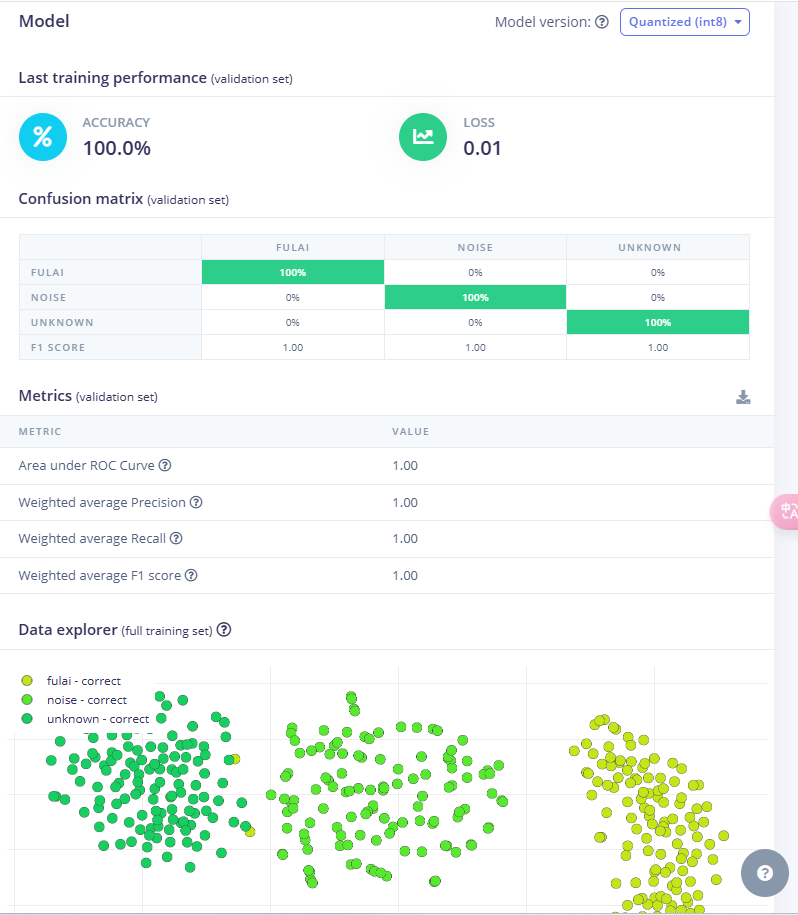

稍等一会，会出训练结果

模型测试

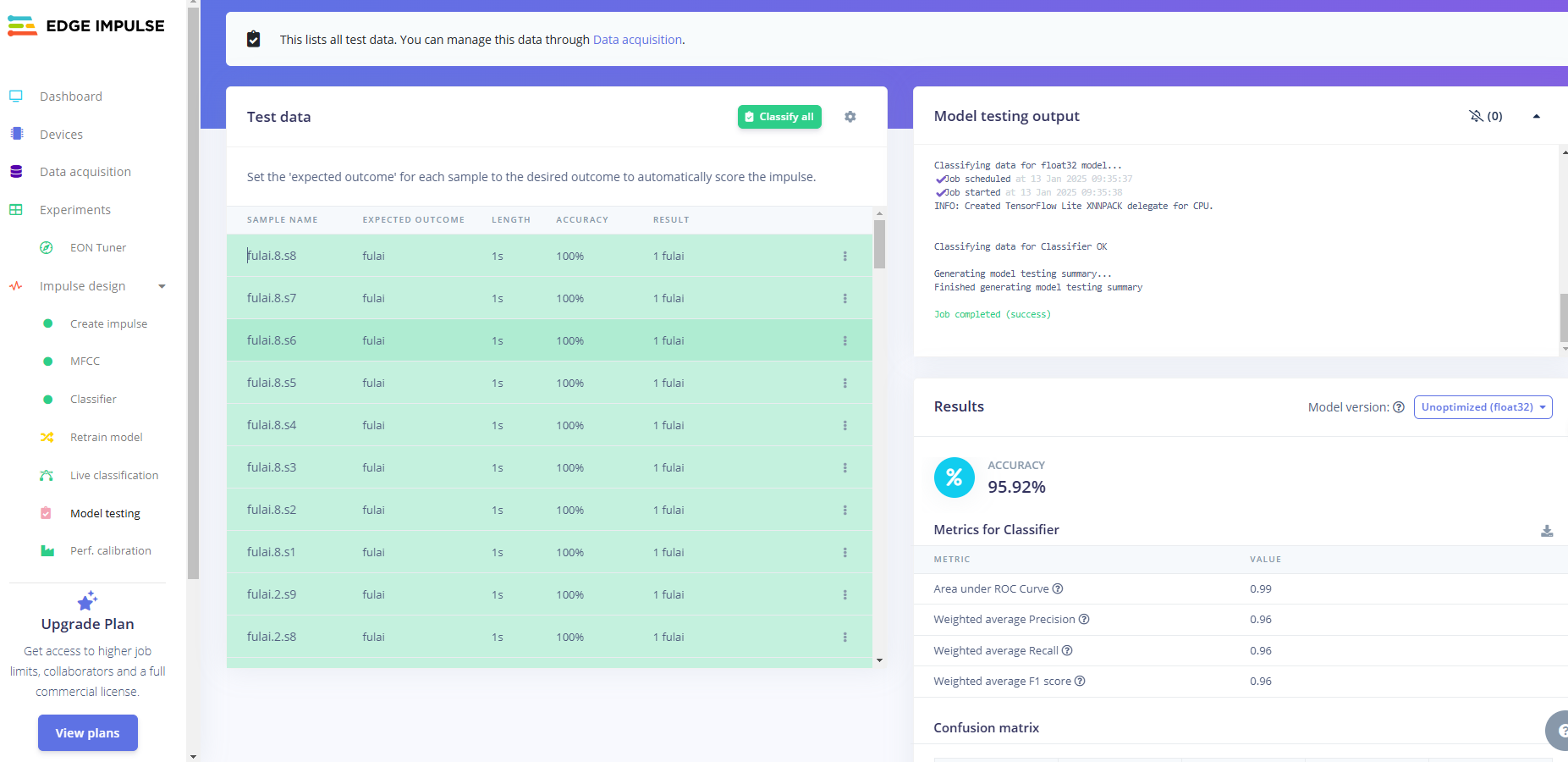

在模型训练好后，我们可以用测试集数据测试一下训练好的模型的准确率。

点击左侧的Model testing，然后点击Classify all，开始分类所有的测试集数据。

生成ESP32-S3模型库文件

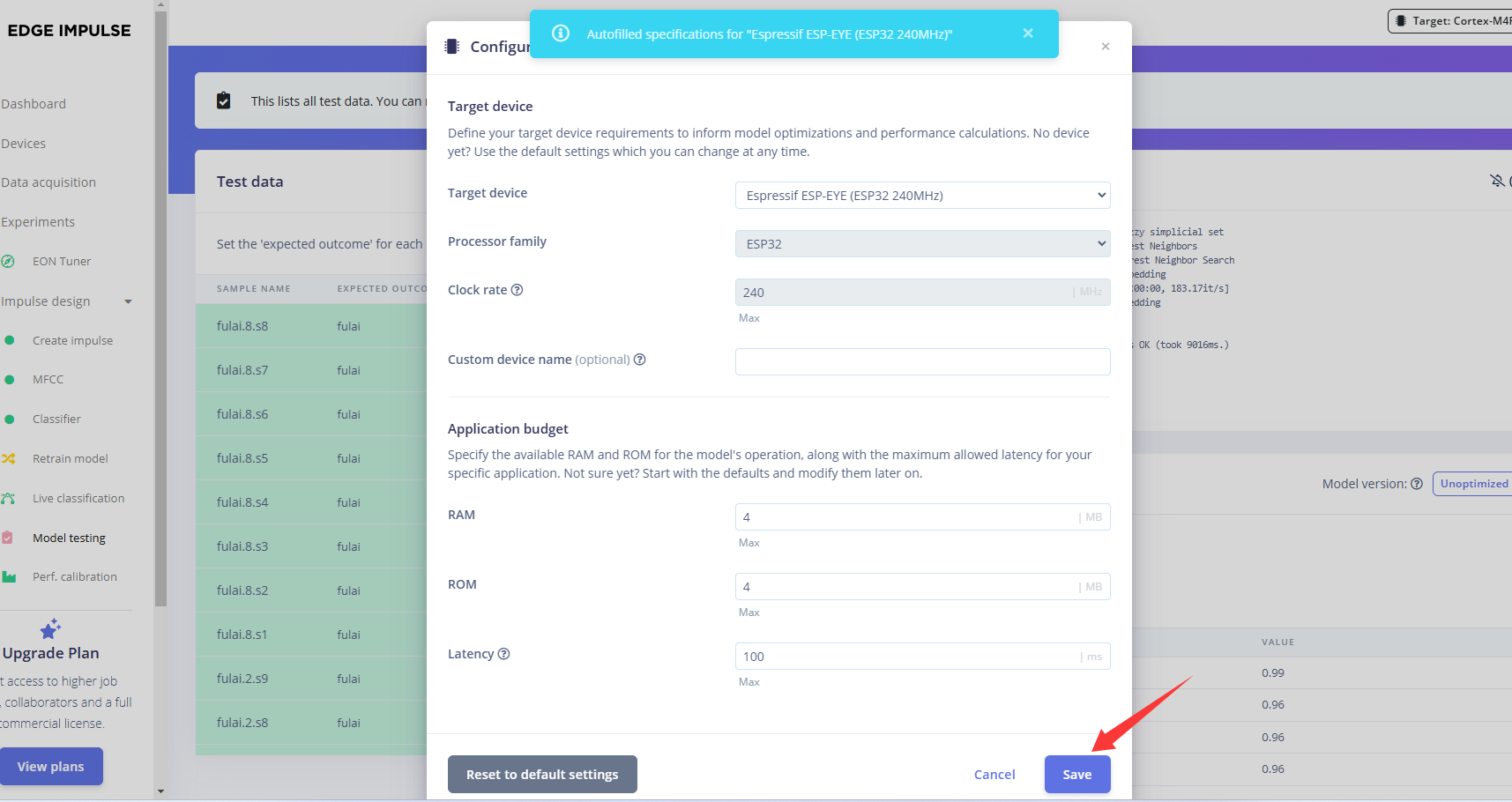

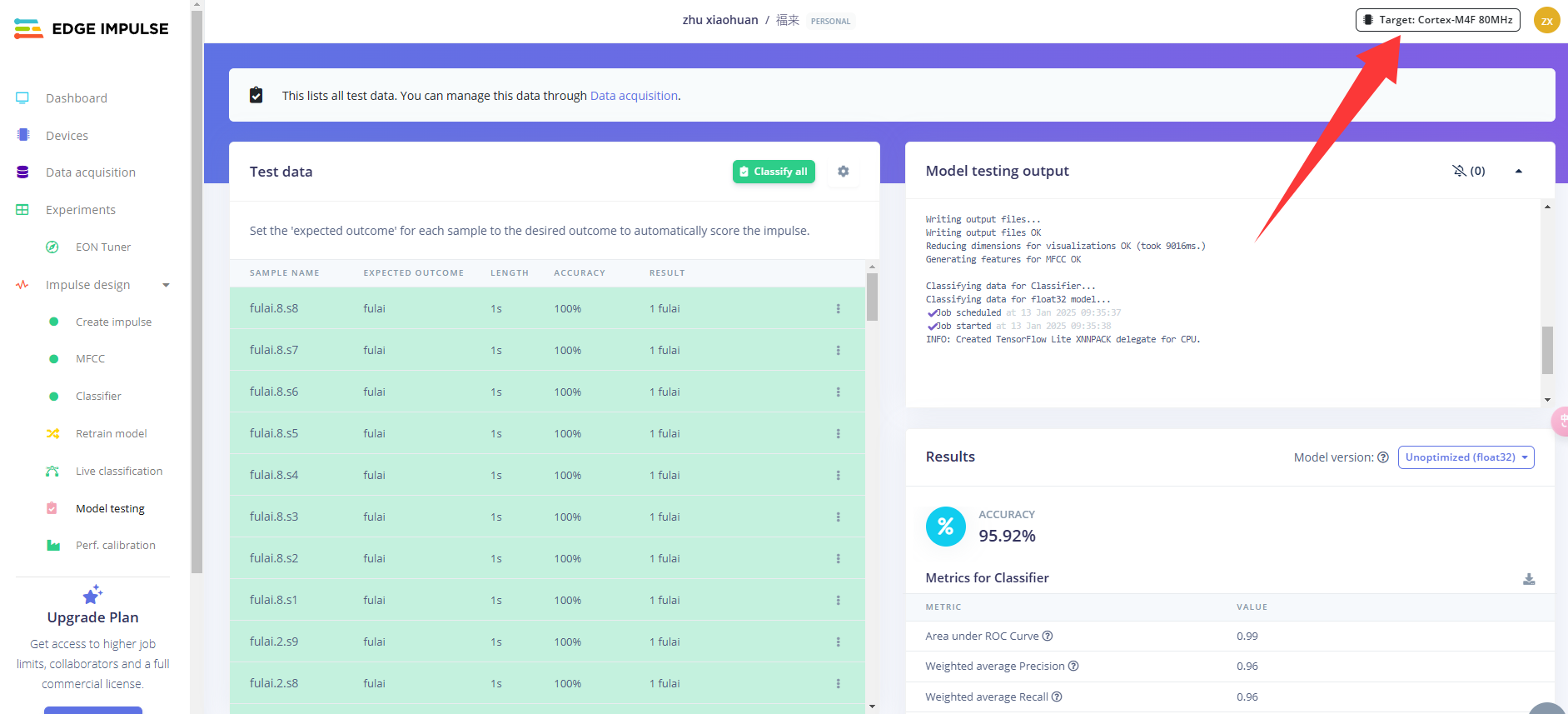

在生成库文件之前，我们先设置一下我们的硬件平台，点击右侧的 Target，选择Target device为ESP-EYE，然后点击 Save。

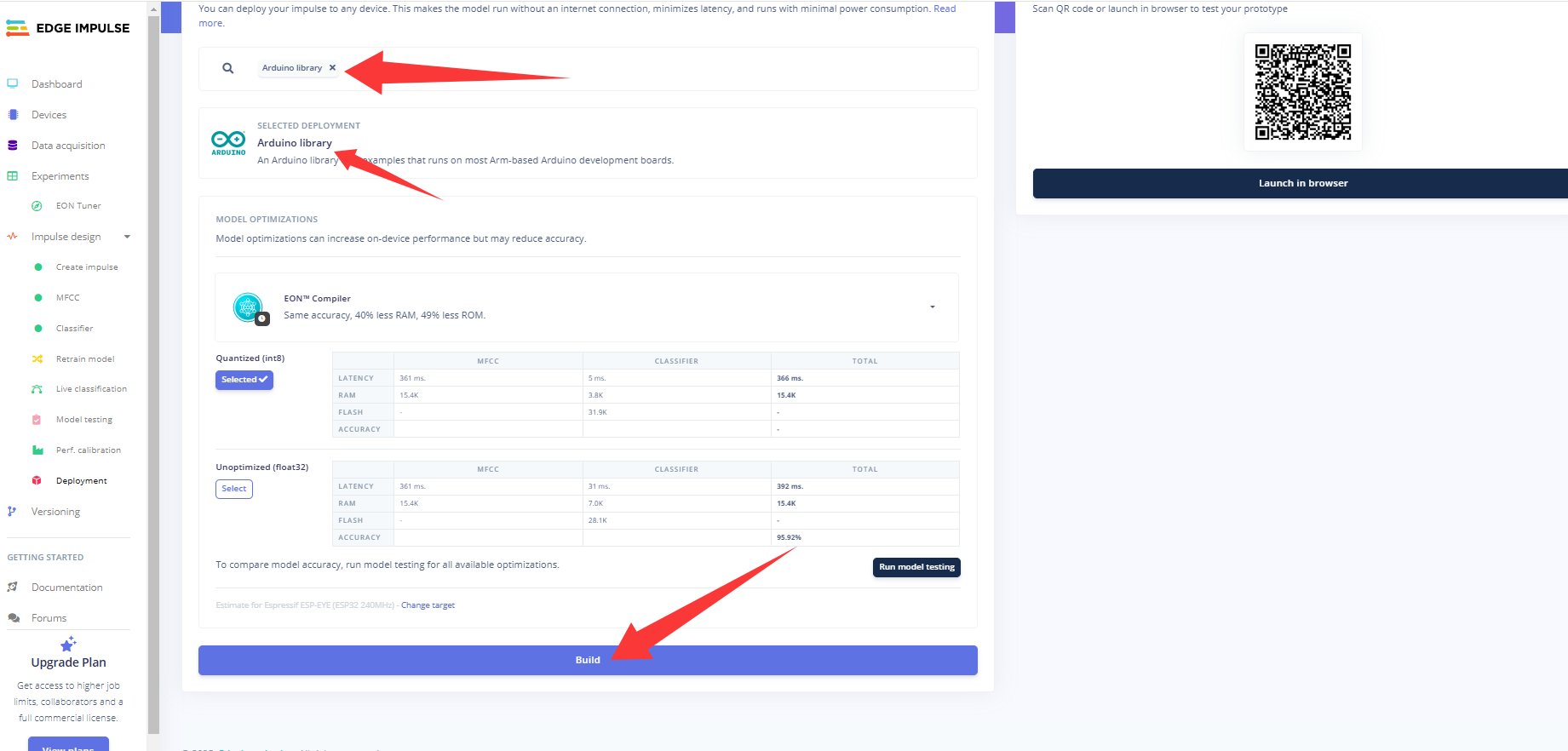

点击左侧的 Deployment部署，依次按照上图的选项配置，点击 Build，开始生成库文件。

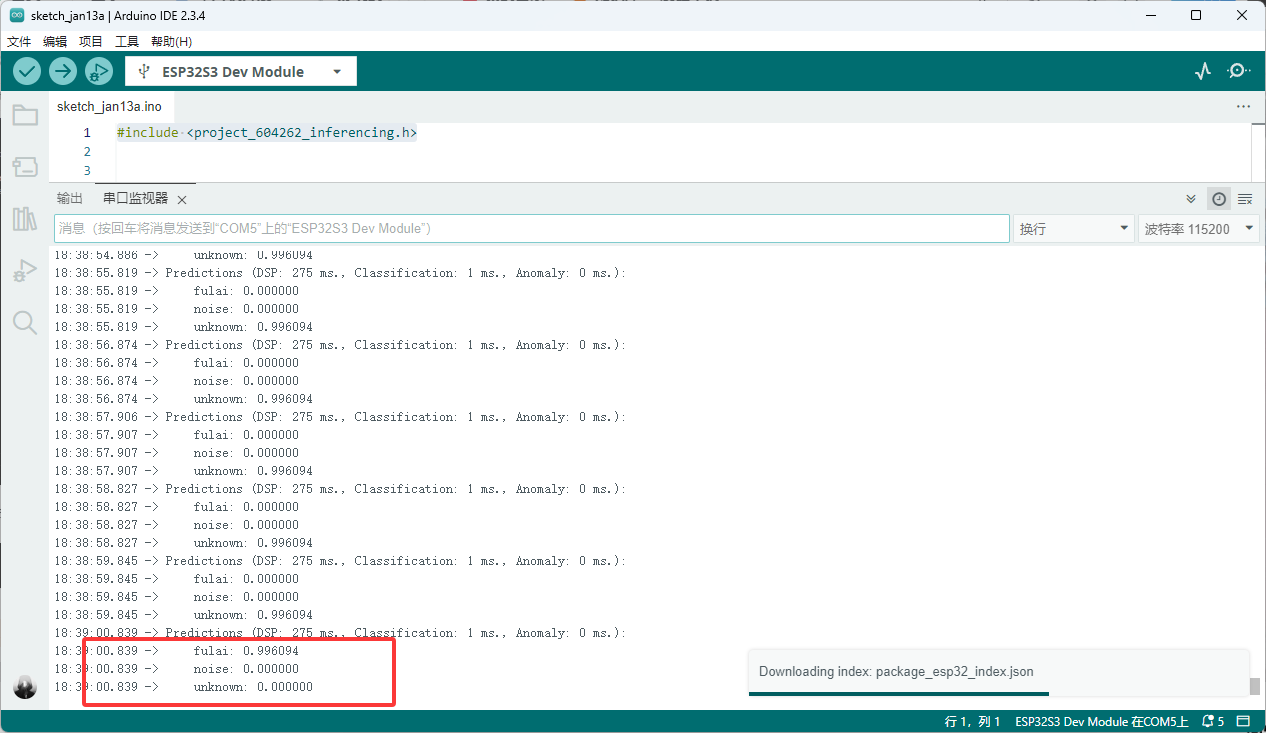

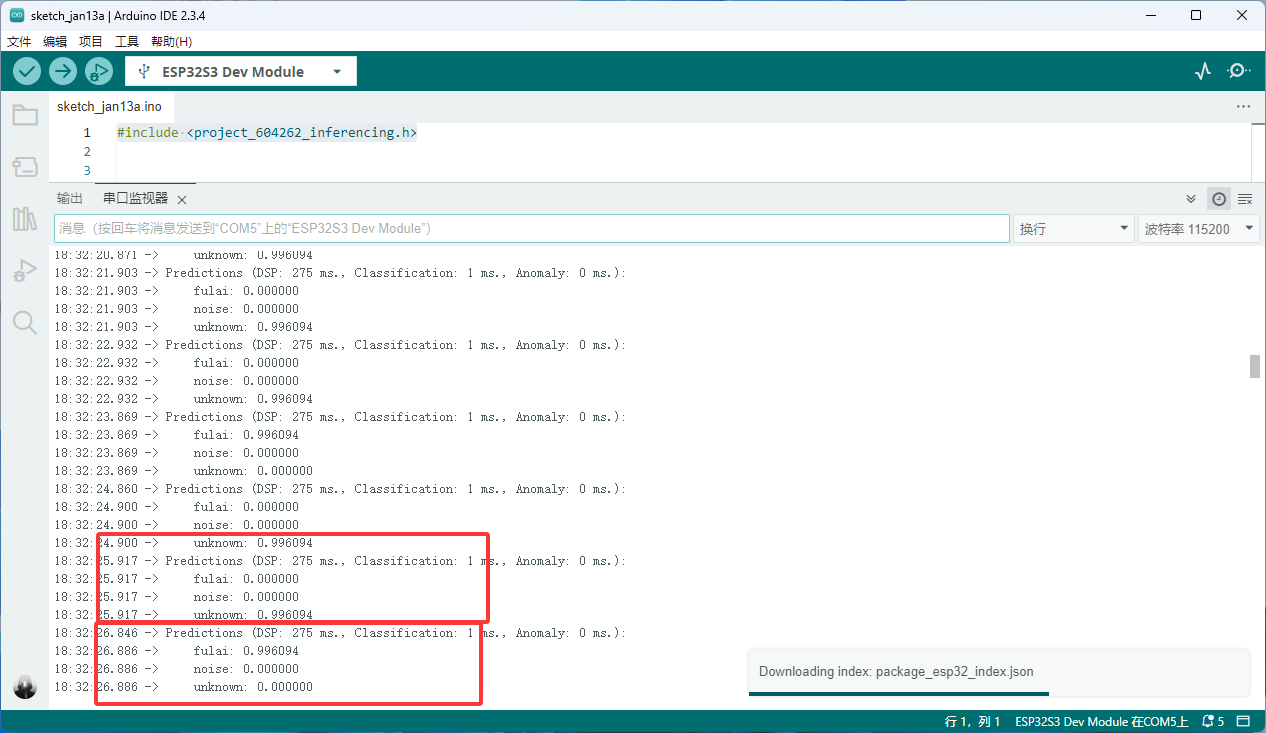

测试唤醒

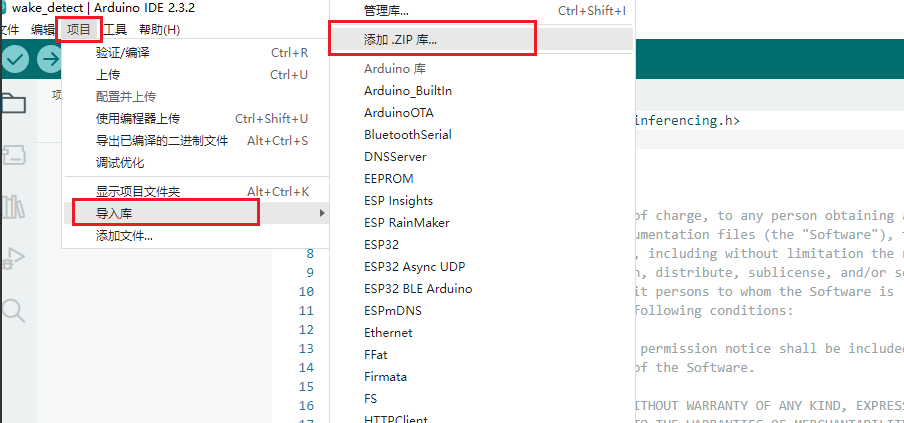

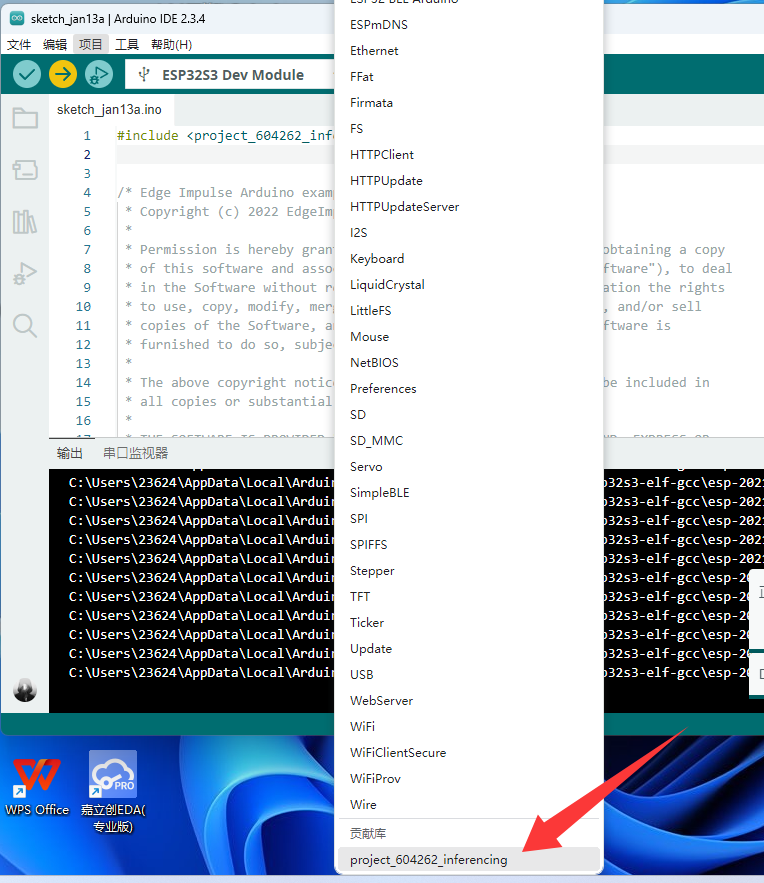

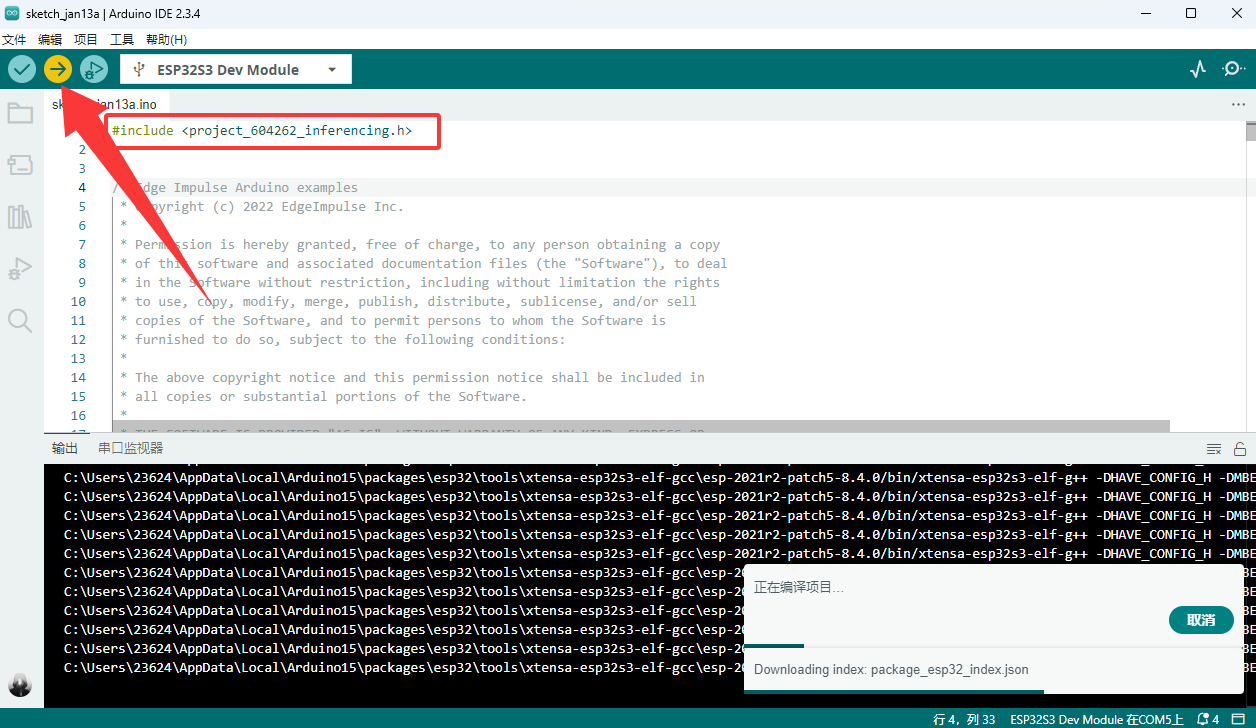

训练好唤醒词库文件后，我们需要在ESP32-S3上测试一下唤醒词功能，代码在这


/* Edge Impulse Arduino examples
 * Copyright (c) 2022 EdgeImpulse Inc.
 *
 * Permission is hereby granted, free of charge, to any person obtaining a copy
 * of this software and associated documentation files (the "Software"), to deal
 * in the Software without restriction, including without limitation the rights
 * to use, copy, modify, merge, publish, distribute, sublicense, and/or sell
 * copies of the Software, and to permit persons to whom the Software is
 * furnished to do so, subject to the following conditions:
 *
 * The above copyright notice and this permission notice shall be included in
 * all copies or substantial portions of the Software.
 *
 * THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR
 * IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY,
 * FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE
 * AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER
 * LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM,
 * OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE
 * SOFTWARE.
 */
// If your target is limited in memory remove this macro to save 10K RAM
#define EIDSP_QUANTIZE_FILTERBANK 0
/*
 ** NOTE: If you run into TFLite arena allocation issue.
 **
 ** This may be due to may dynamic memory fragmentation.
 ** Try defining "-DEI_CLASSIFIER_ALLOCATION_STATIC" in boards.local.txt (create
 ** if it doesn't exist) and copy this file to
 ** `<ARDUINO_CORE_INSTALL_PATH>/arduino/hardware/<mbed_core>/<core_version>/`.
 **
 ** See
 ** (https://support.arduino.cc/hc/en-us/articles/360012076960-Where-are-the-installed-cores-located-)
 ** to find where Arduino installs cores on your machine.
 **
 ** If the problem persists then there's not enough memory for this model and application.
 */
/* Includes ---------------------------------------------------------------- */
//#include <wakeup_detect_houguotongxue_inferencing.h>
#include <driver/i2s.h>
#define SAMPLE_RATE 16000U
#define LED_BUILT_IN 21
// INMP441 config
#define I2S_IN_PORT I2S_NUM_0
#define I2S_IN_BCLK 4
#define I2S_IN_LRC 5
#define I2S_IN_DIN 6
/** Audio buffers, pointers and selectors */
typedef struct {
  int16_t *buffer;
  uint8_t buf_ready;
  uint32_t buf_count;
  uint32_t n_samples;
} inference_t;
static inference_t inference;
static const uint32_t sample_buffer_size = 2048;
static signed short sampleBuffer[sample_buffer_size];
static bool debug_nn = false;  // Set this to true to see e.g. features generated from the raw signal
static bool record_status = true;
/**
 * @brief      Arduino setup function
 */
void setup() {
  // put your setup code here, to run once:
  Serial.begin(115200);
  // comment out the below line to cancel the wait for USB connection (needed for native USB)
  while (!Serial)
    ;
  Serial.println("Edge Impulse Inferencing Demo");
  pinMode(LED_BUILT_IN, OUTPUT);     // Set the pin as output
  digitalWrite(LED_BUILT_IN, HIGH);  //Turn off
  // Initialize I2S for audio input
  i2s_config_t i2s_config_in = {
    .mode = (i2s_mode_t)(I2S_MODE_MASTER | I2S_MODE_RX),
    .sample_rate = SAMPLE_RATE,
    .bits_per_sample = I2S_BITS_PER_SAMPLE_16BIT,  // 注意：INMP441 输出 32 位数据
    .channel_format = I2S_CHANNEL_FMT_ONLY_LEFT,
    .communication_format = i2s_comm_format_t(I2S_COMM_FORMAT_STAND_I2S),
    .intr_alloc_flags = ESP_INTR_FLAG_LEVEL1,
    .dma_buf_count = 8,
    .dma_buf_len = 1024,
  };
  i2s_pin_config_t pin_config_in = {
    .bck_io_num = I2S_IN_BCLK,
    .ws_io_num = I2S_IN_LRC,
    .data_out_num = -1,
    .data_in_num = I2S_IN_DIN
  };
  i2s_driver_install(I2S_IN_PORT, &i2s_config_in, 0, NULL);
  i2s_set_pin(I2S_IN_PORT, &pin_config_in);
  // summary of inferencing settings (from model_metadata.h)
  ei_printf("Inferencing settings:\n");
  ei_printf("\tInterval: ");
  ei_printf_float((float)EI_CLASSIFIER_INTERVAL_MS);
  ei_printf(" ms.\n");
  ei_printf("\tFrame size: %d\n", EI_CLASSIFIER_DSP_INPUT_FRAME_SIZE);
  ei_printf("\tSample length: %d ms.\n", EI_CLASSIFIER_RAW_SAMPLE_COUNT / 16);
  ei_printf("\tNo. of classes: %d\n", sizeof(ei_classifier_inferencing_categories) / sizeof(ei_classifier_inferencing_categories[0]));
  ei_printf("\nStarting continious inference in 2 seconds...\n");
  ei_sleep(2000);
  if (microphone_inference_start(EI_CLASSIFIER_RAW_SAMPLE_COUNT) == false) {
    ei_printf("ERR: Could not allocate audio buffer (size %d), this could be due to the window length of your model\r\n", EI_CLASSIFIER_RAW_SAMPLE_COUNT);
    return;
  }
  ei_printf("Recording...\n");
}
/**
 * @brief      Arduino main function. Runs the inferencing loop.
 */
void loop() {
  bool m = microphone_inference_record();
  if (!m) {
    ei_printf("ERR: Failed to record audio...\n");
    return;
  }
  signal_t signal;
  signal.total_length = EI_CLASSIFIER_RAW_SAMPLE_COUNT;
  signal.get_data = &microphone_audio_signal_get_data;
  ei_impulse_result_t result = { 0 };
  EI_IMPULSE_ERROR r = run_classifier(&signal, &result, debug_nn);
  if (r != EI_IMPULSE_OK) {
    ei_printf("ERR: Failed to run classifier (%d)\n", r);
    return;
  }
  int pred_index = 0;    // Initialize pred_index
  float pred_value = 0;  // Initialize pred_value
  // print the predictions
  ei_printf("Predictions ");
  ei_printf("(DSP: %d ms., Classification: %d ms., Anomaly: %d ms.)",
            result.timing.dsp, result.timing.classification, result.timing.anomaly);
  ei_printf(": \n");
  for (size_t ix = 0; ix < EI_CLASSIFIER_LABEL_COUNT; ix++) {
    ei_printf("    %s: ", result.classification[ix].label);
    ei_printf_float(result.classification[ix].value);
    ei_printf("\n");
    if (result.classification[ix].value > pred_value) {
      pred_index = ix;
      pred_value = result.classification[ix].value;
    }
  }
  // Display inference result
  if (pred_index == 3) {
    digitalWrite(LED_BUILT_IN, LOW);  //Turn on
  } else {
    digitalWrite(LED_BUILT_IN, HIGH);  //Turn off
  }
#if EI_CLASSIFIER_HAS_ANOMALY == 1
  ei_printf("    anomaly score: ");
  ei_printf_float(result.anomaly);
  ei_printf("\n");
#endif
}
static void audio_inference_callback(uint32_t n_bytes) {
  for (int i = 0; i < n_bytes >> 1; i++) {
    inference.buffer[inference.buf_count++] = sampleBuffer[i];
    if (inference.buf_count >= inference.n_samples) {
      inference.buf_count = 0;
      inference.buf_ready = 1;
    }
  }
}
static void capture_samples(void *arg) {
  const int32_t i2s_bytes_to_read = (uint32_t)arg;
  size_t bytes_read = i2s_bytes_to_read;
  while (record_status) {
    /* read data at once from i2s - Modified for XIAO ESP2S3 Sense and I2S.h library */
    i2s_read(I2S_IN_PORT, (void*)sampleBuffer, i2s_bytes_to_read, &bytes_read, 100);
    // esp_i2s::i2s_read(esp_i2s::I2S_NUM_0, (void *)sampleBuffer, i2s_bytes_to_read, &bytes_read, 100);
    if (bytes_read <= 0) {
      ei_printf("Error in I2S read : %d", bytes_read);
    } else {
      if (bytes_read < i2s_bytes_to_read) {
        ei_printf("Partial I2S read");
      }
      // scale the data (otherwise the sound is too quiet)
      for (int x = 0; x < i2s_bytes_to_read / 2; x++) {
        sampleBuffer[x] = (int16_t)(sampleBuffer[x]) * 8;
      }
      if (record_status) {
        audio_inference_callback(i2s_bytes_to_read);
      } else {
        break;
      }
    }
  }
  vTaskDelete(NULL);
}
/**
 * @brief      Init inferencing struct and setup/start PDM
 *
 * @param[in]  n_samples  The n samples
 *
 * @return     { description_of_the_return_value }
 */
static bool microphone_inference_start(uint32_t n_samples) {
  inference.buffer = (int16_t *)malloc(n_samples * sizeof(int16_t));
  if (inference.buffer == NULL) {
    return false;
  }
  inference.buf_count = 0;
  inference.n_samples = n_samples;
  inference.buf_ready = 0;
  //    if (i2s_init(EI_CLASSIFIER_FREQUENCY)) {
  //        ei_printf("Failed to start I2S!");
  //    }
  ei_sleep(100);
  record_status = true;
  xTaskCreate(capture_samples, "CaptureSamples", 1024 * 32, (void *)sample_buffer_size, 10, NULL);
  return true;
}
/**
 * @brief      Wait on new data
 *
 * @return     True when finished
 */
static bool microphone_inference_record(void) {
  bool ret = true;
  while (inference.buf_ready == 0) {
    delay(10);
  }
  inference.buf_ready = 0;
  return ret;
}
/**
 * Get raw audio signal data
 */
static int microphone_audio_signal_get_data(size_t offset, size_t length, float *out_ptr) {
  numpy::int16_to_float(&inference.buffer[offset], out_ptr, length);
  return 0;
}
/**
 * @brief      Stop PDM and release buffers
 */
static void microphone_inference_end(void) {
  free(sampleBuffer);
  ei_free(inference.buffer);
}
#if !defined(EI_CLASSIFIER_SENSOR) || EI_CLASSIFIER_SENSOR != EI_CLASSIFIER_SENSOR_MICROPHONE
#error "Invalid model for current sensor."
#endif
/* Edge Impulse Arduino examples
 * Copyright (c) 2022 EdgeImpulse Inc.
 *
 * Permission is hereby granted, free of charge, to any person obtaining a copy
 * of this software and associated documentation files (the "Software"), to deal
 * in the Software without restriction, including without limitation the rights
 * to use, copy, modify, merge, publish, distribute, sublicense, and/or sell
 * copies of the Software, and to permit persons to whom the Software is
 * furnished to do so, subject to the following conditions:
 *
 * The above copyright notice and this permission notice shall be included in
 * all copies or substantial portions of the Software.
 *
 * THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR
 * IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY,
 * FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE
 * AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER
 * LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM,
 * OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE
 * SOFTWARE.
 */

// If your target is limited in memory remove this macro to save 10K RAM
#define EIDSP_QUANTIZE_FILTERBANK 0

/*
 ** NOTE: If you run into TFLite arena allocation issue.
 **
 ** This may be due to may dynamic memory fragmentation.
 ** Try defining "-DEI_CLASSIFIER_ALLOCATION_STATIC" in boards.local.txt (create
 ** if it doesn't exist) and copy this file to
 ** `<ARDUINO_CORE_INSTALL_PATH>/arduino/hardware/<mbed_core>/<core_version>/`.
 **
 ** See
 ** (https://support.arduino.cc/hc/en-us/articles/360012076960-Where-are-the-installed-cores-located-)
 ** to find where Arduino installs cores on your machine.
 **
 ** If the problem persists then there's not enough memory for this model and application.
 */

/* Includes ---------------------------------------------------------------- */
//#include <wakeup_detect_houguotongxue_inferencing.h>

#include <driver/i2s.h>

#define SAMPLE_RATE 16000U
#define LED_BUILT_IN 21

// INMP441 config
#define I2S_IN_PORT I2S_NUM_0
#define I2S_IN_BCLK 4
#define I2S_IN_LRC 5
#define I2S_IN_DIN 6

/** Audio buffers, pointers and selectors */
typedef struct {
  int16_t *buffer;
  uint8_t buf_ready;
  uint32_t buf_count;
  uint32_t n_samples;
} inference_t;

static inference_t inference;
static const uint32_t sample_buffer_size = 2048;
static signed short sampleBuffer[sample_buffer_size];
static bool debug_nn = false;  // Set this to true to see e.g. features generated from the raw signal
static bool record_status = true;

/**
 * @brief      Arduino setup function
 */
void setup() {
  // put your setup code here, to run once:
  Serial.begin(115200);
  // comment out the below line to cancel the wait for USB connection (needed for native USB)
  while (!Serial)
    ;
  Serial.println("Edge Impulse Inferencing Demo");

  pinMode(LED_BUILT_IN, OUTPUT);     // Set the pin as output
  digitalWrite(LED_BUILT_IN, HIGH);  //Turn off

  // Initialize I2S for audio input
  i2s_config_t i2s_config_in = {
    .mode = (i2s_mode_t)(I2S_MODE_MASTER | I2S_MODE_RX),
    .sample_rate = SAMPLE_RATE,
    .bits_per_sample = I2S_BITS_PER_SAMPLE_16BIT,  // 注意：INMP441 输出 32 位数据
    .channel_format = I2S_CHANNEL_FMT_ONLY_LEFT,
    .communication_format = i2s_comm_format_t(I2S_COMM_FORMAT_STAND_I2S),
    .intr_alloc_flags = ESP_INTR_FLAG_LEVEL1,
    .dma_buf_count = 8,
    .dma_buf_len = 1024,
  };
  i2s_pin_config_t pin_config_in = {
    .bck_io_num = I2S_IN_BCLK,
    .ws_io_num = I2S_IN_LRC,
    .data_out_num = -1,
    .data_in_num = I2S_IN_DIN
  };
  i2s_driver_install(I2S_IN_PORT, &i2s_config_in, 0, NULL);
  i2s_set_pin(I2S_IN_PORT, &pin_config_in);

  // summary of inferencing settings (from model_metadata.h)
  ei_printf("Inferencing settings:\n");
  ei_printf("\tInterval: ");
  ei_printf_float((float)EI_CLASSIFIER_INTERVAL_MS);
  ei_printf(" ms.\n");
  ei_printf("\tFrame size: %d\n", EI_CLASSIFIER_DSP_INPUT_FRAME_SIZE);
  ei_printf("\tSample length: %d ms.\n", EI_CLASSIFIER_RAW_SAMPLE_COUNT / 16);
  ei_printf("\tNo. of classes: %d\n", sizeof(ei_classifier_inferencing_categories) / sizeof(ei_classifier_inferencing_categories[0]));

  ei_printf("\nStarting continious inference in 2 seconds...\n");
  ei_sleep(2000);

  if (microphone_inference_start(EI_CLASSIFIER_RAW_SAMPLE_COUNT) == false) {
    ei_printf("ERR: Could not allocate audio buffer (size %d), this could be due to the window length of your model\r\n", EI_CLASSIFIER_RAW_SAMPLE_COUNT);
    return;
  }

  ei_printf("Recording...\n");
}

/**
 * @brief      Arduino main function. Runs the inferencing loop.
 */
void loop() {
  bool m = microphone_inference_record();
  if (!m) {
    ei_printf("ERR: Failed to record audio...\n");
    return;
  }

  signal_t signal;
  signal.total_length = EI_CLASSIFIER_RAW_SAMPLE_COUNT;
  signal.get_data = &microphone_audio_signal_get_data;
  ei_impulse_result_t result = { 0 };

  EI_IMPULSE_ERROR r = run_classifier(&signal, &result, debug_nn);
  if (r != EI_IMPULSE_OK) {
    ei_printf("ERR: Failed to run classifier (%d)\n", r);
    return;
  }

  int pred_index = 0;    // Initialize pred_index
  float pred_value = 0;  // Initialize pred_value

  // print the predictions
  ei_printf("Predictions ");
  ei_printf("(DSP: %d ms., Classification: %d ms., Anomaly: %d ms.)",
            result.timing.dsp, result.timing.classification, result.timing.anomaly);
  ei_printf(": \n");
  for (size_t ix = 0; ix < EI_CLASSIFIER_LABEL_COUNT; ix++) {
    ei_printf("    %s: ", result.classification[ix].label);
    ei_printf_float(result.classification[ix].value);
    ei_printf("\n");

    if (result.classification[ix].value > pred_value) {
      pred_index = ix;
      pred_value = result.classification[ix].value;
    }
  }
  // Display inference result
  if (pred_index == 3) {
    digitalWrite(LED_BUILT_IN, LOW);  //Turn on
  } else {
    digitalWrite(LED_BUILT_IN, HIGH);  //Turn off
  }


#if EI_CLASSIFIER_HAS_ANOMALY == 1
  ei_printf("    anomaly score: ");
  ei_printf_float(result.anomaly);
  ei_printf("\n");
#endif
}

static void audio_inference_callback(uint32_t n_bytes) {
  for (int i = 0; i < n_bytes >> 1; i++) {
    inference.buffer[inference.buf_count++] = sampleBuffer[i];

    if (inference.buf_count >= inference.n_samples) {
      inference.buf_count = 0;
      inference.buf_ready = 1;
    }
  }
}

static void capture_samples(void *arg) {

  const int32_t i2s_bytes_to_read = (uint32_t)arg;
  size_t bytes_read = i2s_bytes_to_read;

  while (record_status) {

    /* read data at once from i2s - Modified for XIAO ESP2S3 Sense and I2S.h library */
    i2s_read(I2S_IN_PORT, (void*)sampleBuffer, i2s_bytes_to_read, &bytes_read, 100);
    // esp_i2s::i2s_read(esp_i2s::I2S_NUM_0, (void *)sampleBuffer, i2s_bytes_to_read, &bytes_read, 100);

    if (bytes_read <= 0) {
      ei_printf("Error in I2S read : %d", bytes_read);
    } else {
      if (bytes_read < i2s_bytes_to_read) {
        ei_printf("Partial I2S read");
      }

      // scale the data (otherwise the sound is too quiet)
      for (int x = 0; x < i2s_bytes_to_read / 2; x++) {
        sampleBuffer[x] = (int16_t)(sampleBuffer[x]) * 8;
      }

      if (record_status) {
        audio_inference_callback(i2s_bytes_to_read);
      } else {
        break;
      }
    }
  }
  vTaskDelete(NULL);
}

/**
 * @brief      Init inferencing struct and setup/start PDM
 *
 * @param[in]  n_samples  The n samples
 *
 * @return     { description_of_the_return_value }
 */
static bool microphone_inference_start(uint32_t n_samples) {
  inference.buffer = (int16_t *)malloc(n_samples * sizeof(int16_t));

  if (inference.buffer == NULL) {
    return false;
  }

  inference.buf_count = 0;
  inference.n_samples = n_samples;
  inference.buf_ready = 0;

  //    if (i2s_init(EI_CLASSIFIER_FREQUENCY)) {
  //        ei_printf("Failed to start I2S!");
  //    }

  ei_sleep(100);

  record_status = true;

  xTaskCreate(capture_samples, "CaptureSamples", 1024 * 32, (void *)sample_buffer_size, 10, NULL);

  return true;
}

/**
 * @brief      Wait on new data
 *
 * @return     True when finished
 */
static bool microphone_inference_record(void) {
  bool ret = true;

  while (inference.buf_ready == 0) {
    delay(10);
  }

  inference.buf_ready = 0;
  return ret;
}

/**
 * Get raw audio signal data
 */
static int microphone_audio_signal_get_data(size_t offset, size_t length, float *out_ptr) {
  numpy::int16_to_float(&inference.buffer[offset], out_ptr, length);

  return 0;
}

/**
 * @brief      Stop PDM and release buffers
 */
static void microphone_inference_end(void) {
  free(sampleBuffer);
  ei_free(inference.buffer);
}

#if !defined(EI_CLASSIFIER_SENSOR) || EI_CLASSIFIER_SENSOR != EI_CLASSIFIER_SENSOR_MICROPHONE
#error "Invalid model for current sensor."
#endif
/* Edge Impulse Arduino examples
 * Copyright (c) 2022 EdgeImpulse Inc.
 *
 * Permission is hereby granted, free of charge, to any person obtaining a copy
 * of this software and associated documentation files (the "Software"), to deal
 * in the Software without restriction, including without limitation the rights
 * to use, copy, modify, merge, publish, distribute, sublicense, and/or sell
 * copies of the Software, and to permit persons to whom the Software is
 * furnished to do so, subject to the following conditions:
 *
 * The above copyright notice and this permission notice shall be included in
 * all copies or substantial portions of the Software.
 *
 * THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR
 * IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY,
 * FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE
 * AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER
 * LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM,
 * OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE
 * SOFTWARE.
 */

// If your target is limited in memory remove this macro to save 10K RAM
#define EIDSP_QUANTIZE_FILTERBANK 0

/*
 ** NOTE: If you run into TFLite arena allocation issue.
 **
 ** This may be due to may dynamic memory fragmentation.
 ** Try defining "-DEI_CLASSIFIER_ALLOCATION_STATIC" in boards.local.txt (create
 ** if it doesn't exist) and copy this file to
 ** `<ARDUINO_CORE_INSTALL_PATH>/arduino/hardware/<mbed_core>/<core_version>/`.
 **
 ** See
 ** (https://support.arduino.cc/hc/en-us/articles/360012076960-Where-are-the-installed-cores-located-)
 ** to find where Arduino installs cores on your machine.
 **
 ** If the problem persists then there's not enough memory for this model and application.
 */

/* Includes ---------------------------------------------------------------- */
//#include <wakeup_detect_houguotongxue_inferencing.h>

#include <driver/i2s.h>

#define SAMPLE_RATE 16000U
#define LED_BUILT_IN 21

// INMP441 config
#define I2S_IN_PORT I2S_NUM_0
#define I2S_IN_BCLK 4
#define I2S_IN_LRC 5
#define I2S_IN_DIN 6

/** Audio buffers, pointers and selectors */
typedef struct {
  int16_t *buffer;
  uint8_t buf_ready;
  uint32_t buf_count;
  uint32_t n_samples;
} inference_t;

static inference_t inference;
static const uint32_t sample_buffer_size = 2048;
static signed short sampleBuffer[sample_buffer_size];
static bool debug_nn = false;  // Set this to true to see e.g. features generated from the raw signal
static bool record_status = true;

/**
 * @brief      Arduino setup function
 */
void setup() {
  // put your setup code here, to run once:
  Serial.begin(115200);
  // comment out the below line to cancel the wait for USB connection (needed for native USB)
  while (!Serial)
    ;
  Serial.println("Edge Impulse Inferencing Demo");

  pinMode(LED_BUILT_IN, OUTPUT);     // Set the pin as output
  digitalWrite(LED_BUILT_IN, HIGH);  //Turn off

  // Initialize I2S for audio input
  i2s_config_t i2s_config_in = {
    .mode = (i2s_mode_t)(I2S_MODE_MASTER | I2S_MODE_RX),
    .sample_rate = SAMPLE_RATE,
    .bits_per_sample = I2S_BITS_PER_SAMPLE_16BIT,  // 注意：INMP441 输出 32 位数据
    .channel_format = I2S_CHANNEL_FMT_ONLY_LEFT,
    .communication_format = i2s_comm_format_t(I2S_COMM_FORMAT_STAND_I2S),
    .intr_alloc_flags = ESP_INTR_FLAG_LEVEL1,
    .dma_buf_count = 8,
    .dma_buf_len = 1024,
  };
  i2s_pin_config_t pin_config_in = {
    .bck_io_num = I2S_IN_BCLK,
    .ws_io_num = I2S_IN_LRC,
    .data_out_num = -1,
    .data_in_num = I2S_IN_DIN
  };
  i2s_driver_install(I2S_IN_PORT, &i2s_config_in, 0, NULL);
  i2s_set_pin(I2S_IN_PORT, &pin_config_in);

  // summary of inferencing settings (from model_metadata.h)
  ei_printf("Inferencing settings:\n");
  ei_printf("\tInterval: ");
  ei_printf_float((float)EI_CLASSIFIER_INTERVAL_MS);
  ei_printf(" ms.\n");
  ei_printf("\tFrame size: %d\n", EI_CLASSIFIER_DSP_INPUT_FRAME_SIZE);
  ei_printf("\tSample length: %d ms.\n", EI_CLASSIFIER_RAW_SAMPLE_COUNT / 16);
  ei_printf("\tNo. of classes: %d\n", sizeof(ei_classifier_inferencing_categories) / sizeof(ei_classifier_inferencing_categories[0]));

  ei_printf("\nStarting continious inference in 2 seconds...\n");
  ei_sleep(2000);

  if (microphone_inference_start(EI_CLASSIFIER_RAW_SAMPLE_COUNT) == false) {
    ei_printf("ERR: Could not allocate audio buffer (size %d), this could be due to the window length of your model\r\n", EI_CLASSIFIER_RAW_SAMPLE_COUNT);
    return;
  }

  ei_printf("Recording...\n");
}

/**
 * @brief      Arduino main function. Runs the inferencing loop.
 */
void loop() {
  bool m = microphone_inference_record();
  if (!m) {
    ei_printf("ERR: Failed to record audio...\n");
    return;
  }

  signal_t signal;
  signal.total_length = EI_CLASSIFIER_RAW_SAMPLE_COUNT;
  signal.get_data = &microphone_audio_signal_get_data;
  ei_impulse_result_t result = { 0 };

  EI_IMPULSE_ERROR r = run_classifier(&signal, &result, debug_nn);
  if (r != EI_IMPULSE_OK) {
    ei_printf("ERR: Failed to run classifier (%d)\n", r);
    return;
  }

  int pred_index = 0;    // Initialize pred_index
  float pred_value = 0;  // Initialize pred_value

  // print the predictions
  ei_printf("Predictions ");
  ei_printf("(DSP: %d ms., Classification: %d ms., Anomaly: %d ms.)",
            result.timing.dsp, result.timing.classification, result.timing.anomaly);
  ei_printf(": \n");
  for (size_t ix = 0; ix < EI_CLASSIFIER_LABEL_COUNT; ix++) {
    ei_printf("    %s: ", result.classification[ix].label);
    ei_printf_float(result.classification[ix].value);
    ei_printf("\n");

    if (result.classification[ix].value > pred_value) {
      pred_index = ix;
      pred_value = result.classification[ix].value;
    }
  }
  // Display inference result
  if (pred_index == 3) {
    digitalWrite(LED_BUILT_IN, LOW);  //Turn on
  } else {
    digitalWrite(LED_BUILT_IN, HIGH);  //Turn off
  }


#if EI_CLASSIFIER_HAS_ANOMALY == 1
  ei_printf("    anomaly score: ");
  ei_printf_float(result.anomaly);
  ei_printf("\n");
#endif
}

static void audio_inference_callback(uint32_t n_bytes) {
  for (int i = 0; i < n_bytes >> 1; i++) {
    inference.buffer[inference.buf_count++] = sampleBuffer[i];

    if (inference.buf_count >= inference.n_samples) {
      inference.buf_count = 0;
      inference.buf_ready = 1;
    }
  }
}

static void capture_samples(void *arg) {

  const int32_t i2s_bytes_to_read = (uint32_t)arg;
  size_t bytes_read = i2s_bytes_to_read;

  while (record_status) {

    /* read data at once from i2s - Modified for XIAO ESP2S3 Sense and I2S.h library */
    i2s_read(I2S_IN_PORT, (void*)sampleBuffer, i2s_bytes_to_read, &bytes_read, 100);
    // esp_i2s::i2s_read(esp_i2s::I2S_NUM_0, (void *)sampleBuffer, i2s_bytes_to_read, &bytes_read, 100);

    if (bytes_read <= 0) {
      ei_printf("Error in I2S read : %d", bytes_read);
    } else {
      if (bytes_read < i2s_bytes_to_read) {
        ei_printf("Partial I2S read");
      }

      // scale the data (otherwise the sound is too quiet)
      for (int x = 0; x < i2s_bytes_to_read / 2; x++) {
        sampleBuffer[x] = (int16_t)(sampleBuffer[x]) * 8;
      }

      if (record_status) {
        audio_inference_callback(i2s_bytes_to_read);
      } else {
        break;
      }
    }
  }
  vTaskDelete(NULL);
}

/**
 * @brief      Init inferencing struct and setup/start PDM
 *
 * @param[in]  n_samples  The n samples
 *
 * @return     { description_of_the_return_value }
 */
static bool microphone_inference_start(uint32_t n_samples) {
  inference.buffer = (int16_t *)malloc(n_samples * sizeof(int16_t));

  if (inference.buffer == NULL) {
    return false;
  }

  inference.buf_count = 0;
  inference.n_samples = n_samples;
  inference.buf_ready = 0;

  //    if (i2s_init(EI_CLASSIFIER_FREQUENCY)) {
  //        ei_printf("Failed to start I2S!");
  //    }

  ei_sleep(100);

  record_status = true;

  xTaskCreate(capture_samples, "CaptureSamples", 1024 * 32, (void *)sample_buffer_size, 10, NULL);

  return true;
}

/**
 * @brief      Wait on new data
 *
 * @return     True when finished
 */
static bool microphone_inference_record(void) {
  bool ret = true;

  while (inference.buf_ready == 0) {
    delay(10);
  }

  inference.buf_ready = 0;
  return ret;
}

/**
 * Get raw audio signal data
 */
static int microphone_audio_signal_get_data(size_t offset, size_t length, float *out_ptr) {
  numpy::int16_to_float(&inference.buffer[offset], out_ptr, length);

  return 0;
}

/**
 * @brief      Stop PDM and release buffers
 */
static void microphone_inference_end(void) {
  free(sampleBuffer);
  ei_free(inference.buffer);
}

#if !defined(EI_CLASSIFIER_SENSOR) || EI_CLASSIFIER_SENSOR != EI_CLASSIFIER_SENSOR_MICROPHONE
#error "Invalid model for current sensor."
#endif

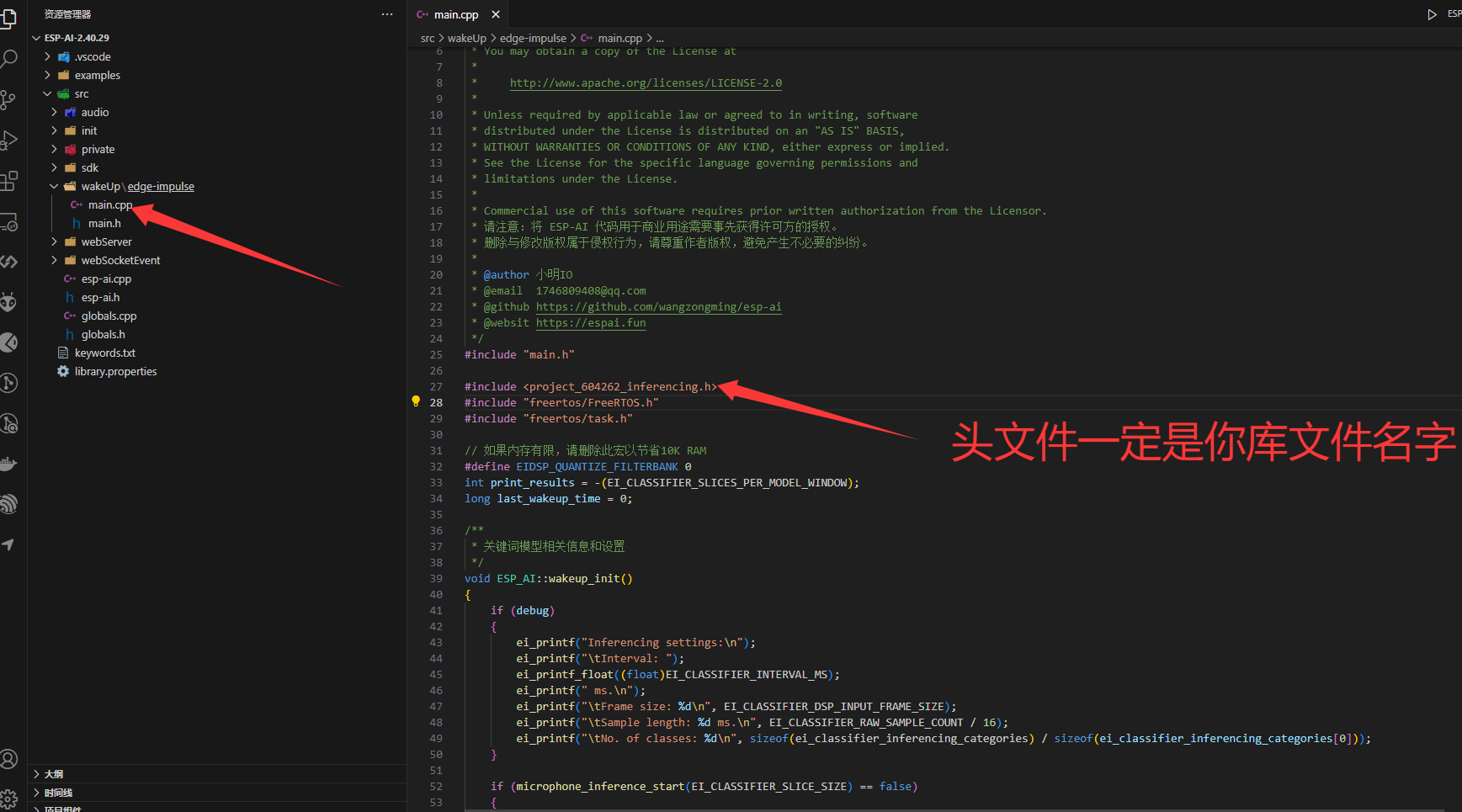

导入成功后，我们需要引用该库文件，因此再次点击项目，导入库，点击选择刚才导入的库文件。

编译就好了

然后唤醒词唤醒，值接近1，说明唤醒成功了

ESP-AI替换唤醒词

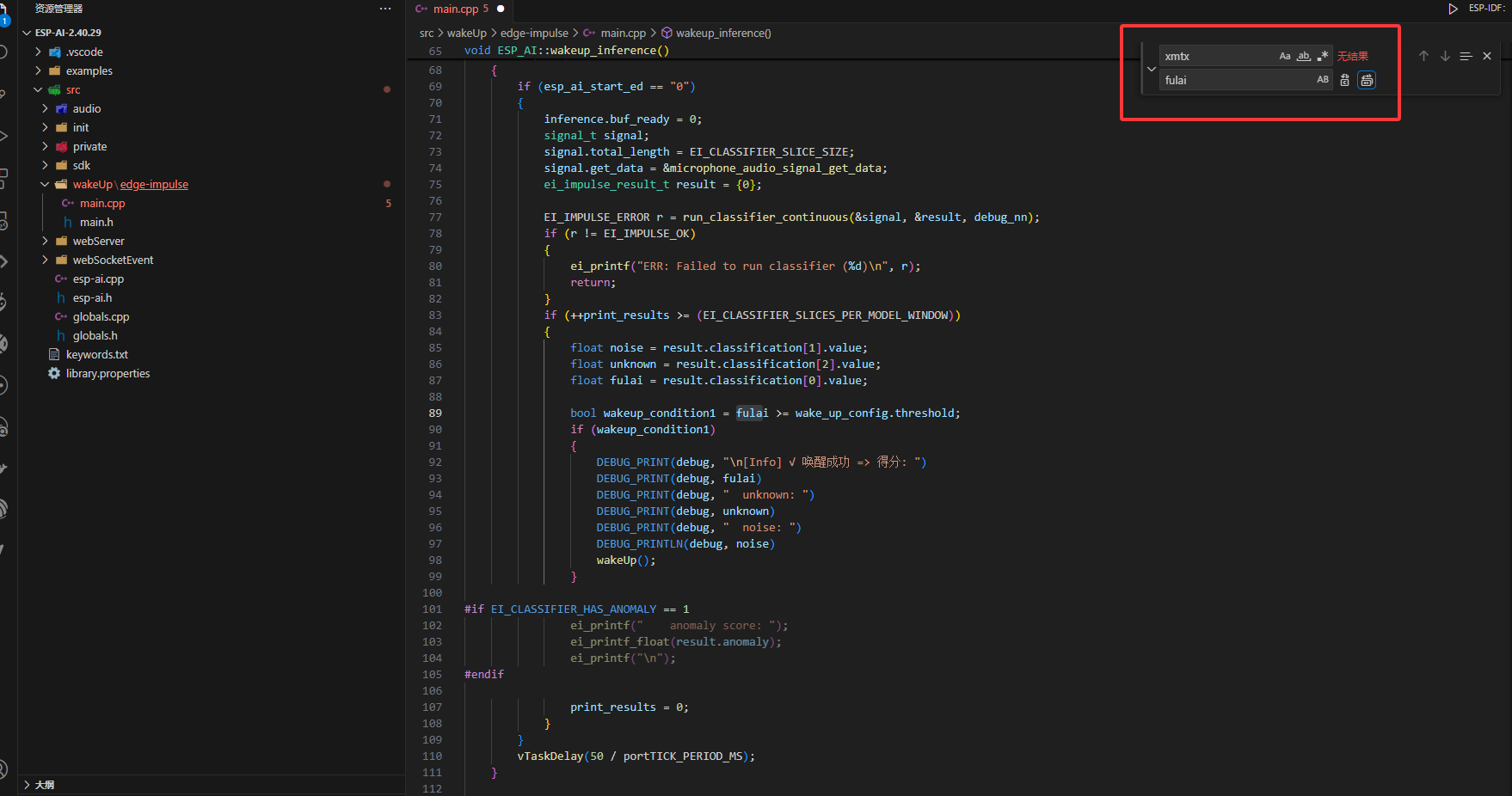

将xmtx替换成fulai

串口输出查看这三个顺序

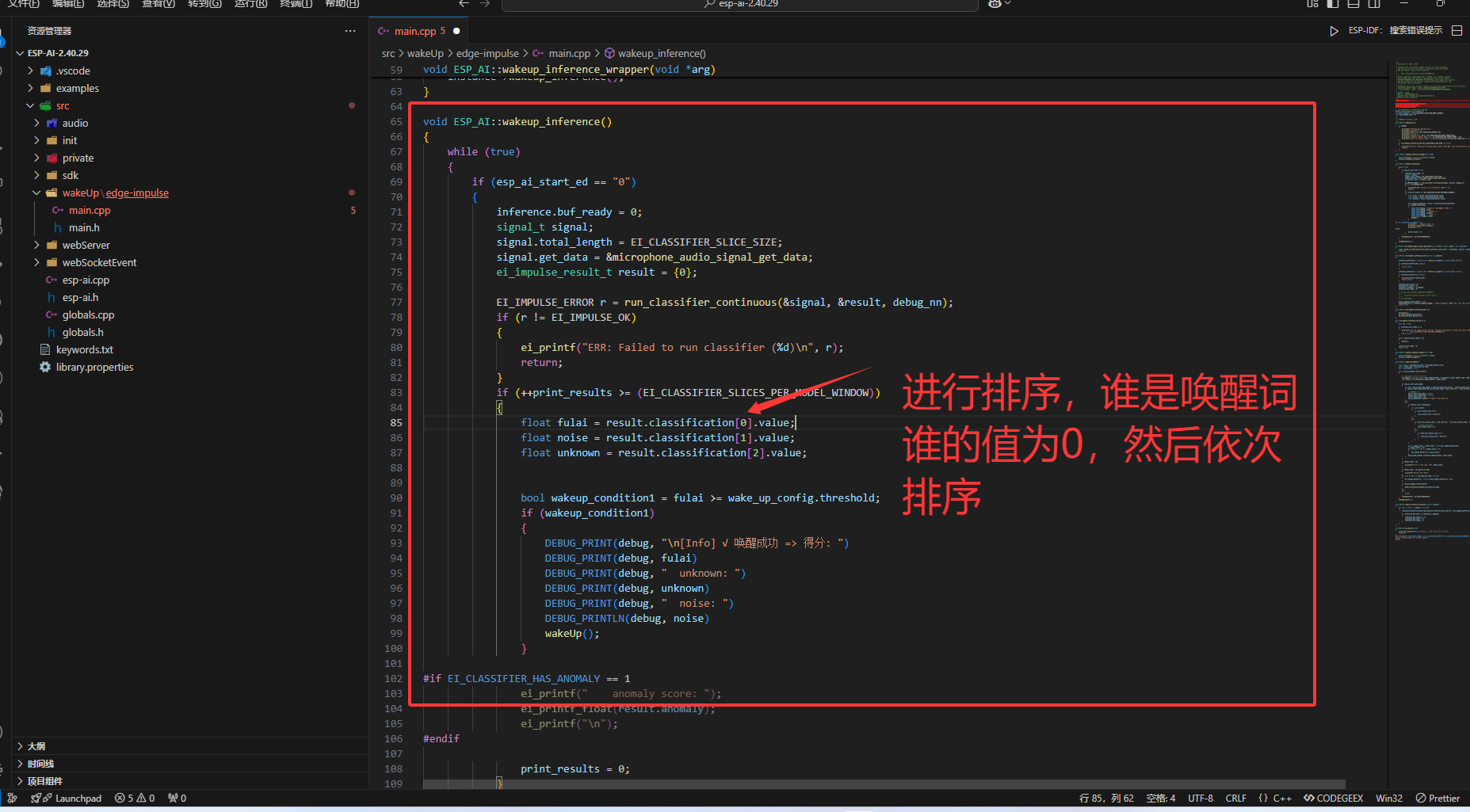

进行排序，最后编译即可

版权声明 1 本网站名称：青柠博客
2 本站永久网址：https://www.qingningz.cn/
3 本网站的文章部分内容可能来源于网络，仅供大家学习与参考，如有侵权，请联系站长 QQ2362400196进行删除处理。
4 本站一切资源不代表本站立场，并不代表本站赞同其观点和对其真实性负责。
5 本站一律禁止以任何方式发布或转载任何违法的相关信息，访客发现请向站长举报
6 本站资源大多存储在云盘，如发现链接失效，请联系我们我们会第一时间更新。

THE END

ESP32

评论共8条

欢迎您留下宝贵的见解！

提交

只看作者

- 用户371988960
  大佬，请问为啥我拉取的wangzongming/esp-ai代码src没有wakeUp这个文件夹呢？在代码仓库上也没有2.40.29的版本，您那边的代码能麻烦发我一份不？我想验证下自定义唤醒词的可能性，但是现在卡住了...跪谢大佬
  28天前贵州省黔西南州回复
- - 云端有个小卖铺作者0

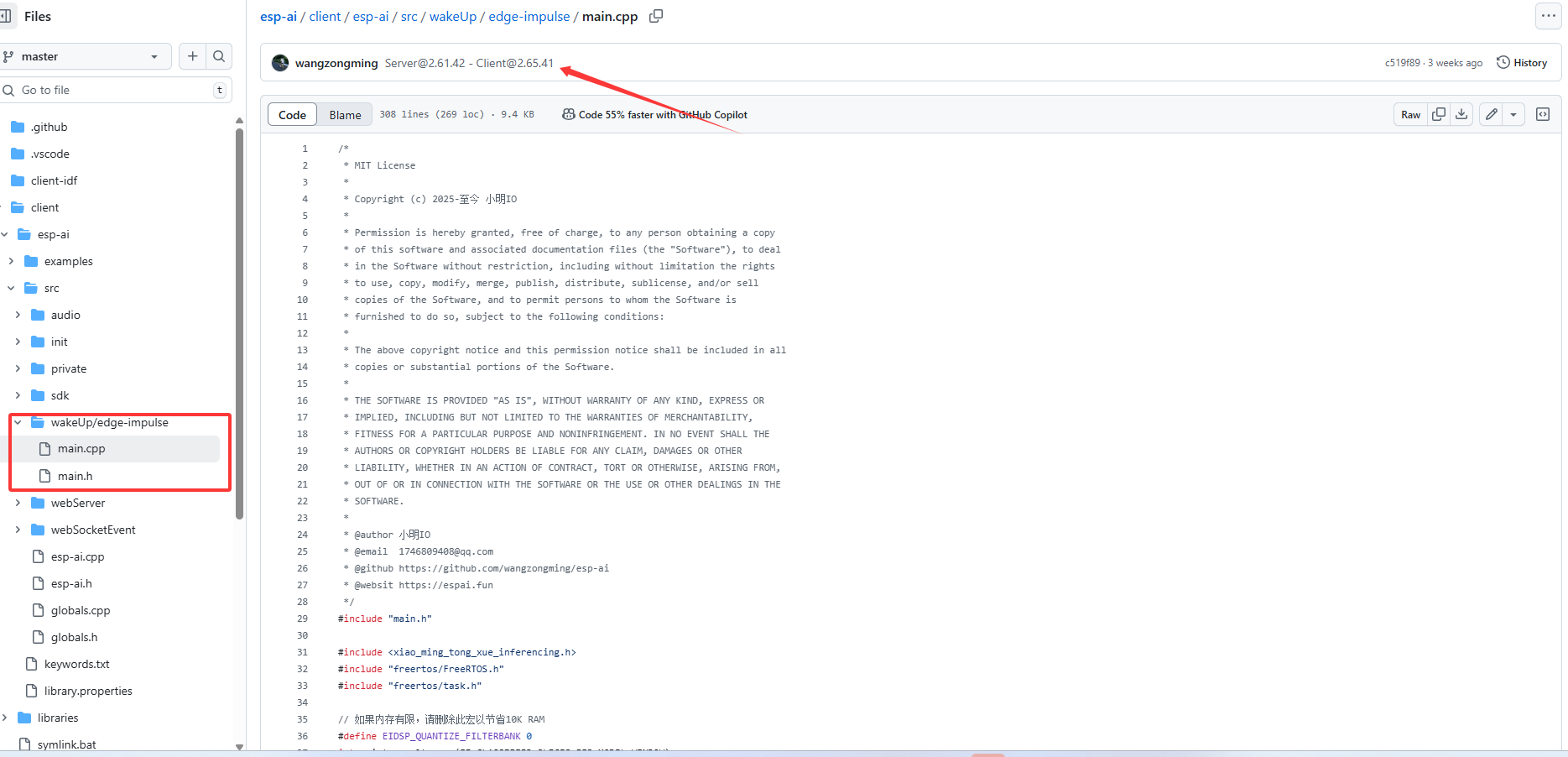

    这不是有呢吗，你再仔细看看
    28天前陕西省西安市@用户37198896回复
  - - 用户371988960
      谢谢大佬指点，我以为是项目根路径上有wakeUp这个文件夹，没想到是在client下面，感激不尽
      25天前贵州省黔西南州@云端有个小卖铺回复
- 用户371988960
  你好，请问编译出来的【福来】可以发我一份试试吗？我还在等sd卡模块，但是我想看看这个思路编译处理的可以用不，如果可以的话，请发一下1042888966@qq.com。不胜感激
  28天前贵州省黔西南州回复
- - 云端有个小卖铺作者0
    我放到了云盘里，你试试https://www.123684.com/s/i5h0Vv-HJbtv
    28天前陕西省西安市@用户37198896回复
  - - 用户371988960
      谢谢大佬好人一生平安
      28天前贵州省黔西南州@云端有个小卖铺回复
- 0
  esp-ai 开发板可以直接用吗
  3个月前湖南省长沙市回复
- - 云端有个小卖铺作者0
    可以的，文章末尾有替换方法
    3个月前陕西省西安市@匿名回复
